MODEL SPECS |
Click on a technology to learn more.
Engine Management Technology |
Chassis Management Technology |
Maximum Power | 55.0 kW {75 PS} / 14,500 rpm |
Maximum Power with Ram Air | 56.7 kW {77 PS} / 14,500 rpm |
Maximum Torque | 37.6 Nm {3.8 kgfm} / 12,500 rpm |

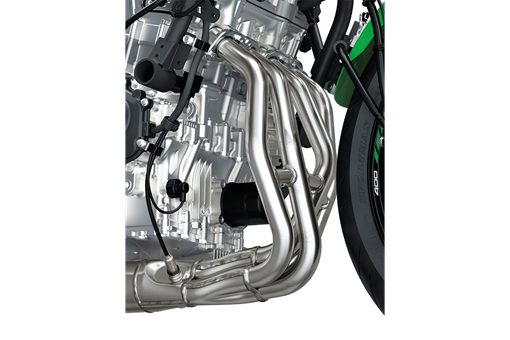

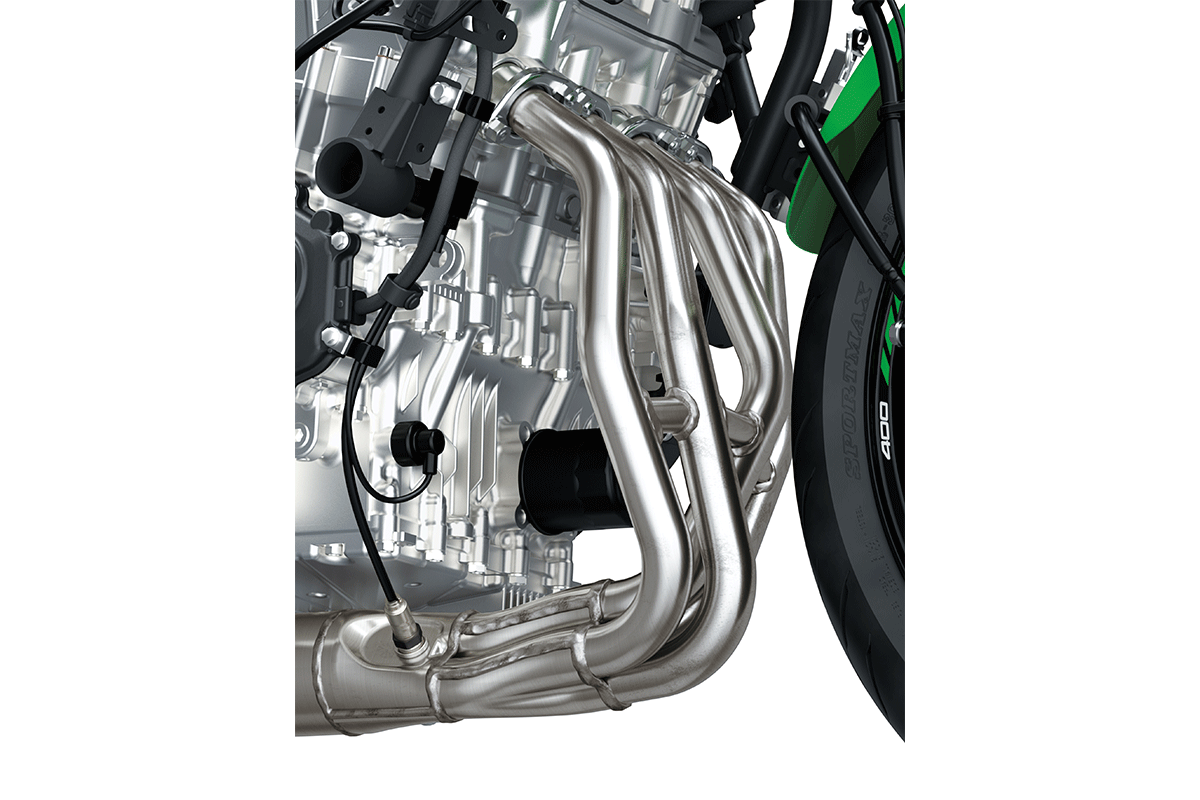

Engine | 4-stroke In-Line Four |
Displacement | 399 cc |
Bore x Stroke | 57.0 x 39.1 mm |
Compression Ratio | 12.3:1 |
Valve System | DOHC, 16 valves |
Fuel System | Fuel injection: ø34 mm x 4 |
Ignition | Digital |
Starting | Electric |

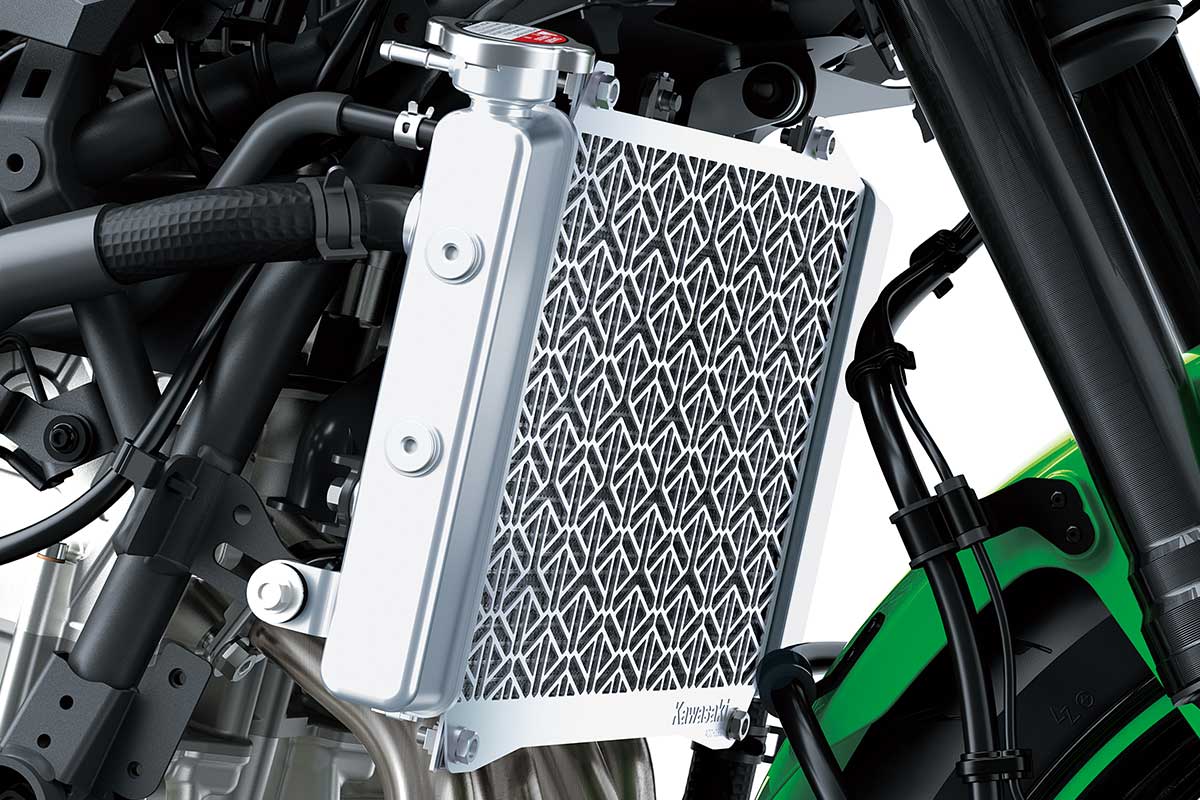

Cooling | Liquid-cooled |
Lubrication | Forced lubrication, wet sump |
Transmission | 6-speed, return |
Primary Reduction Ratio | 2.029 (69/34) |
Gear Ratio: 1st | 2.929 (41/14) |
Gear Ratio: 2nd | 2.056 (37/18) |
Gear Ratio: 3rd | 1.619 (34/21) |
Gear Ratio: 4th | 1.333 (32/24) |
Gear Ratio: 5th | 1.154 (30/26) |
Gear Ratio: 6th | 1.037 (28/27) |
Final Reduction Ratio | 3.429 (48/14) |
Clutch | Wet multi-disc, manual |

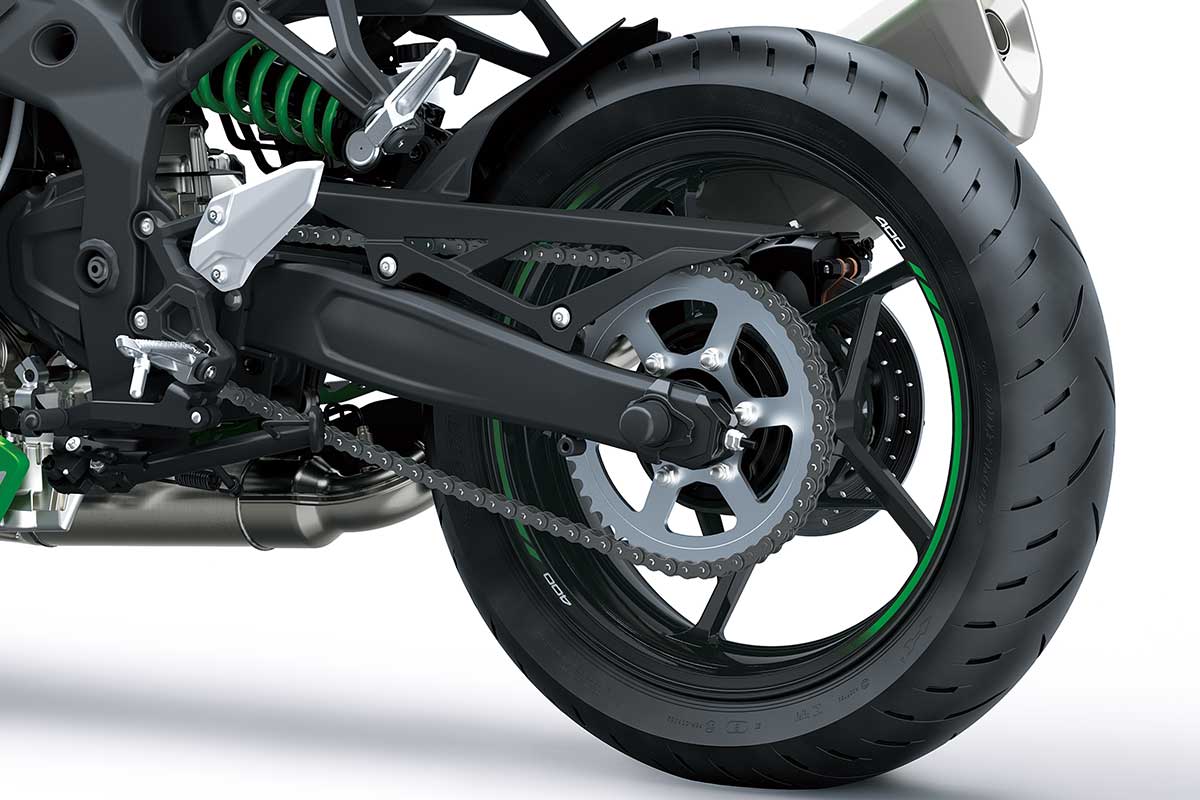

Final Drive | Chain |

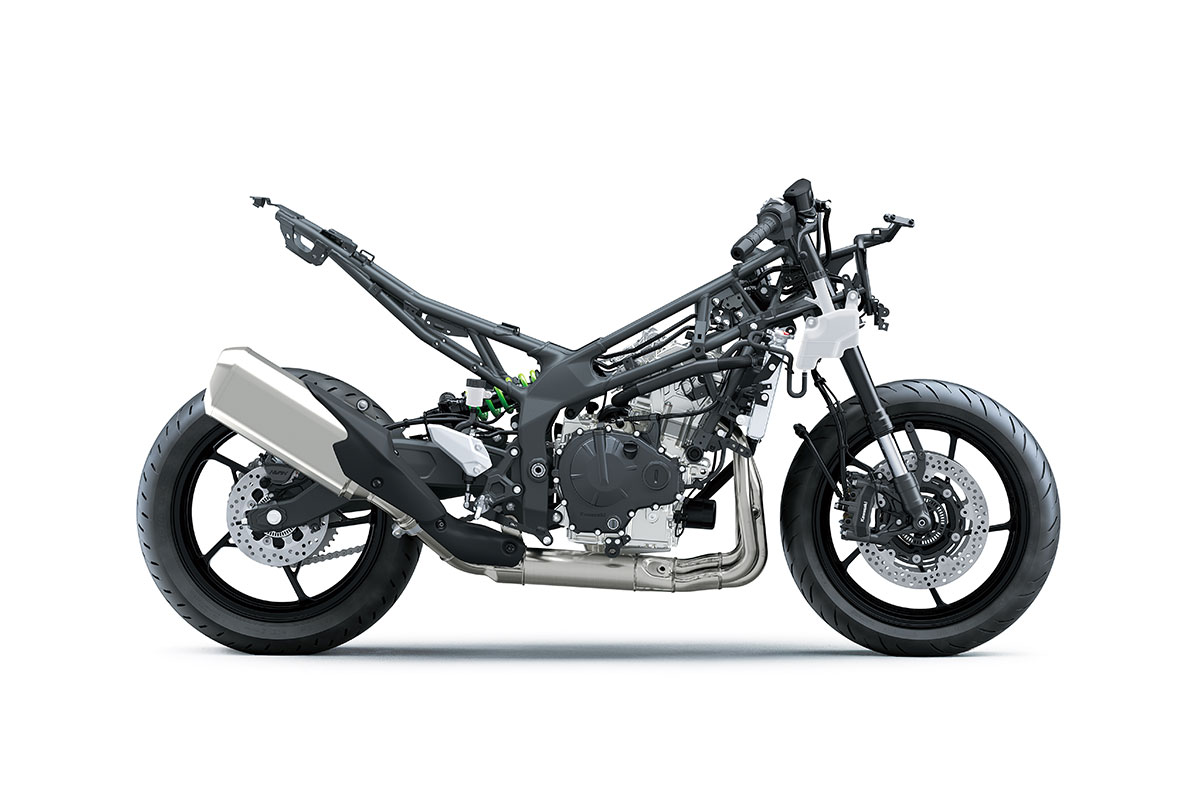

Frame | Trellis, high-tensile steel |

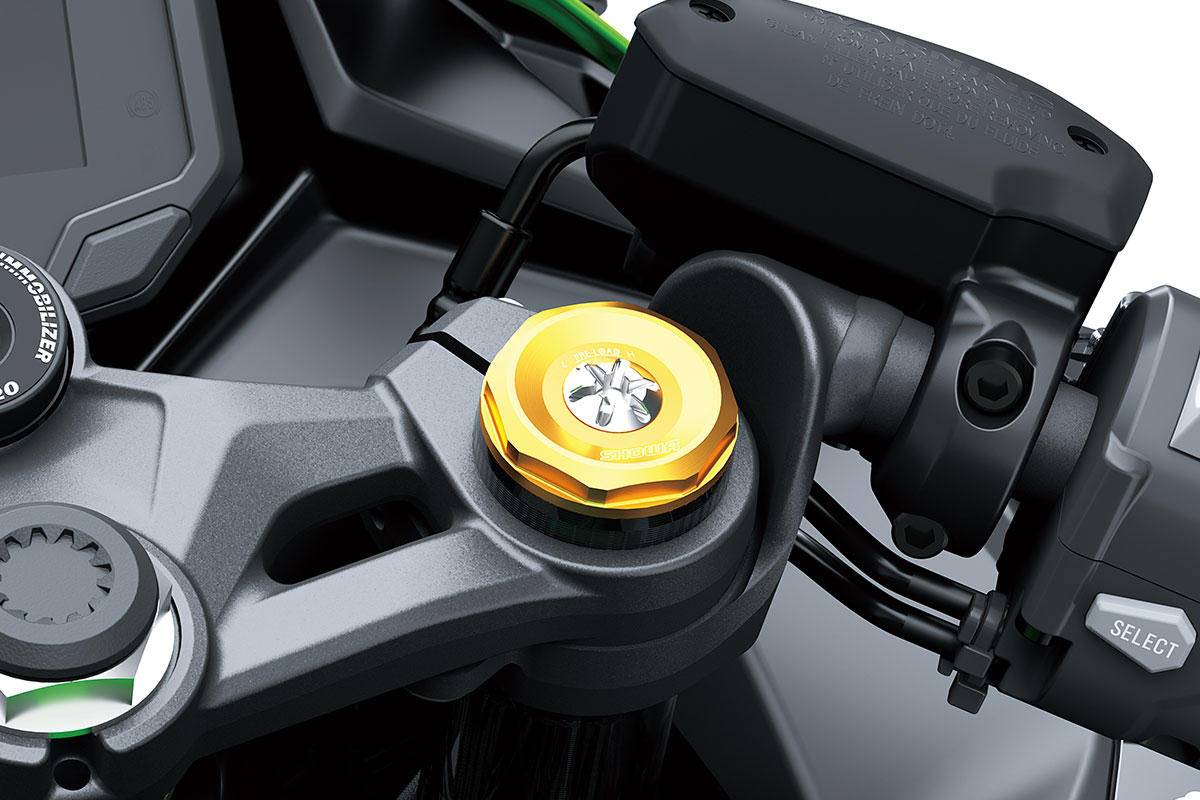

Front Suspension | ø37 mm inverted fork (SFF-BP) with spring preload adjustability and top-out springs |

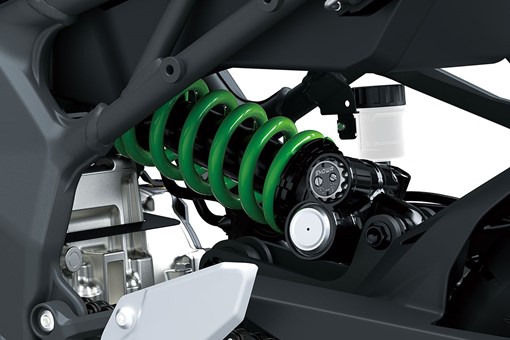

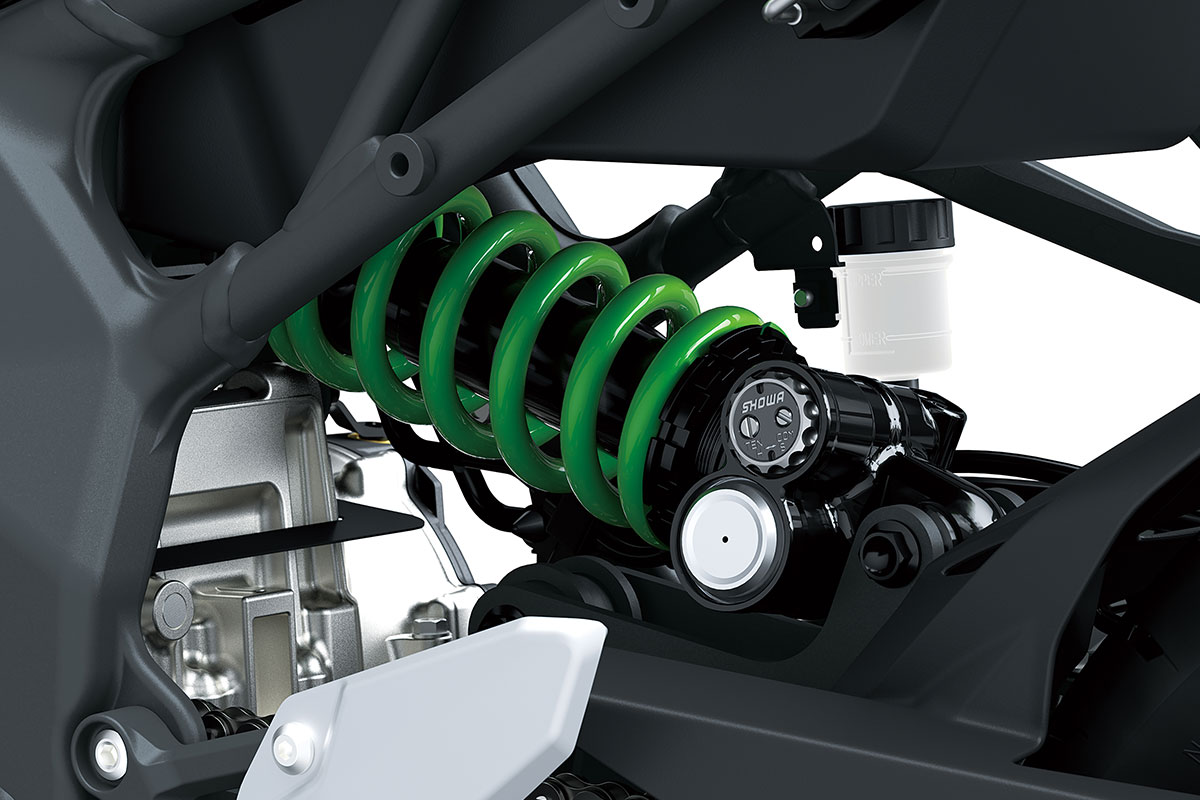

Rear Suspension | Horizontal Back-link, BFRC lite gas-charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability, and top-out spring |
Front Wheel Travel | 120 mm |
Rear Wheel Travel | 124 mm |
Rake | 23.5° |
Trail | 97 mm |
Steering Angle (L/R) | 35° / 35° |
Front Tyre | 120/70ZR17M/C (58W) |
Rear Tyre | 160/60ZR17M/C (69W) |

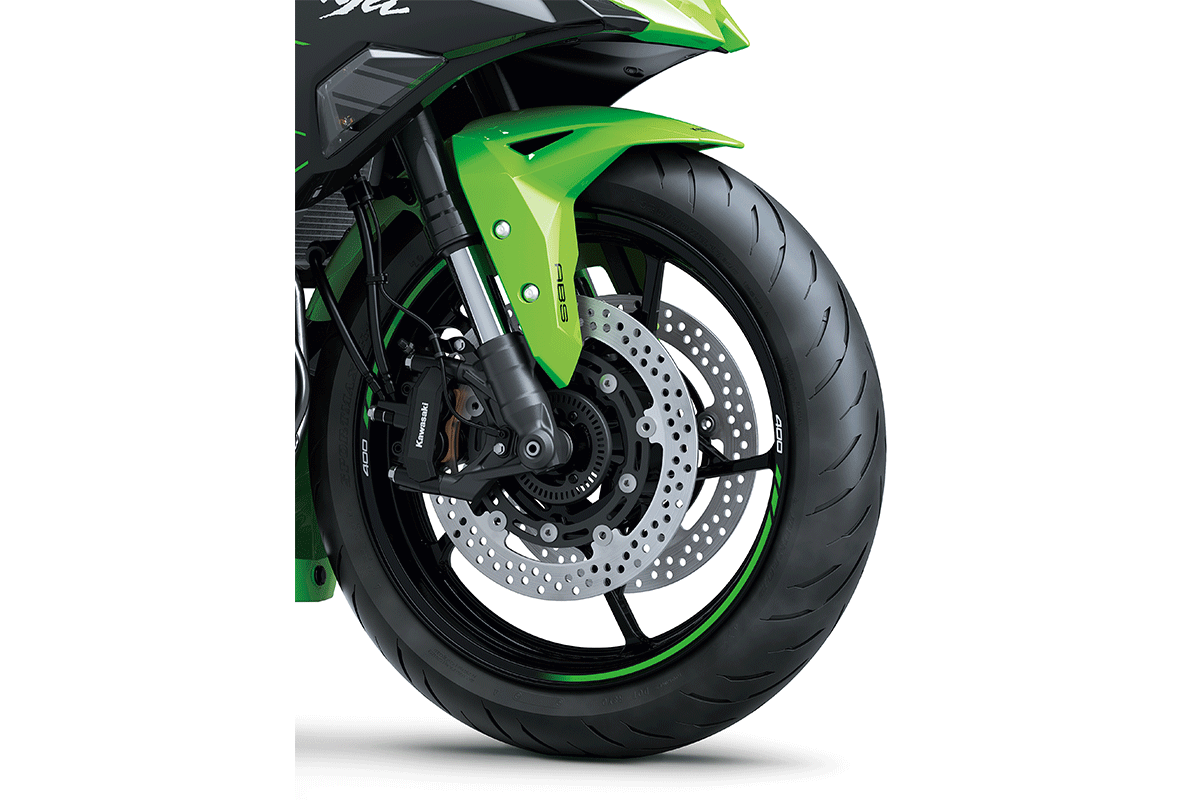

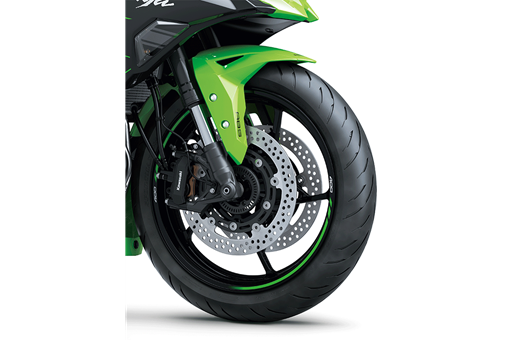

Front Brake/s | Dual semi-floating ø290 mm discs |
Front Caliper/s | Dual radial-mount, monobloc, opposed 4-piston |
Rear Brake | ø220 mm disc |
Rear Caliper | Single-piston |
Dimensions (LxWxH) | 1,990 x 765 x 1,110 mm |
Wheelbase | 1,380 mm |
Road Clearance | 135 mm |

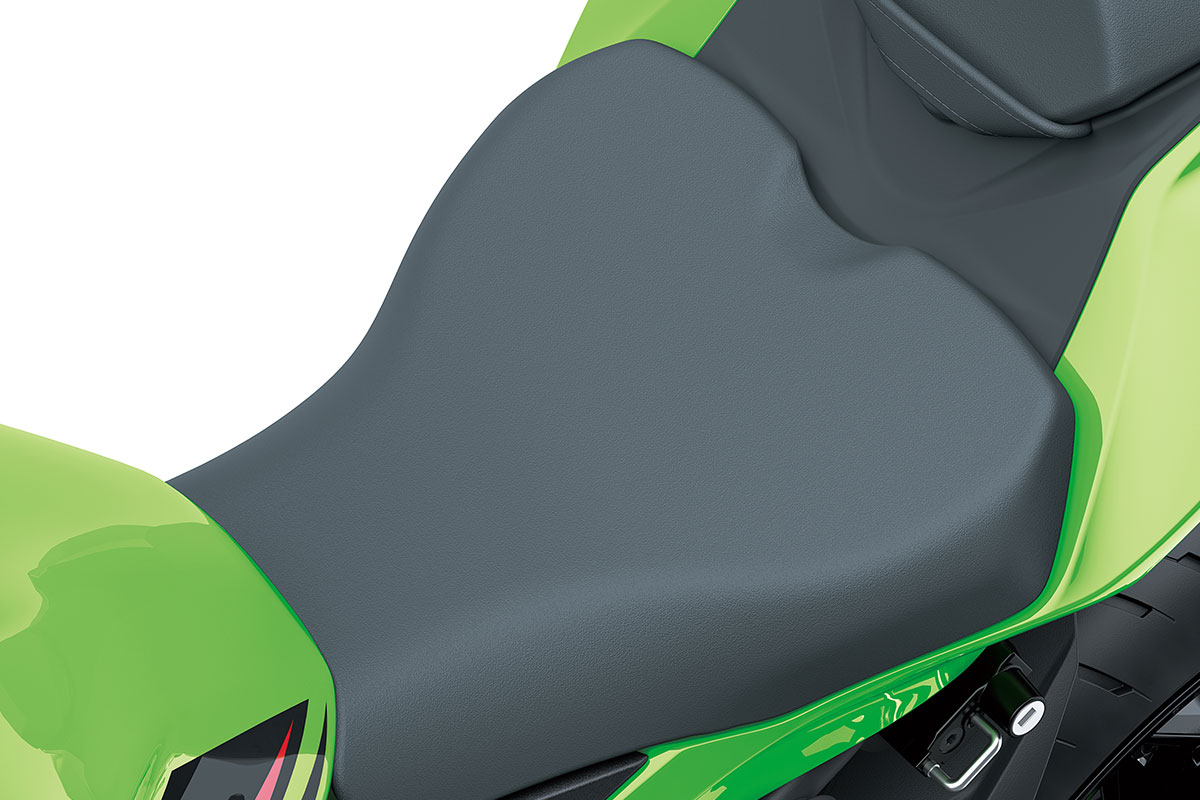

Seat Height | 800 mm |
Curb Weight* | 188 kg |

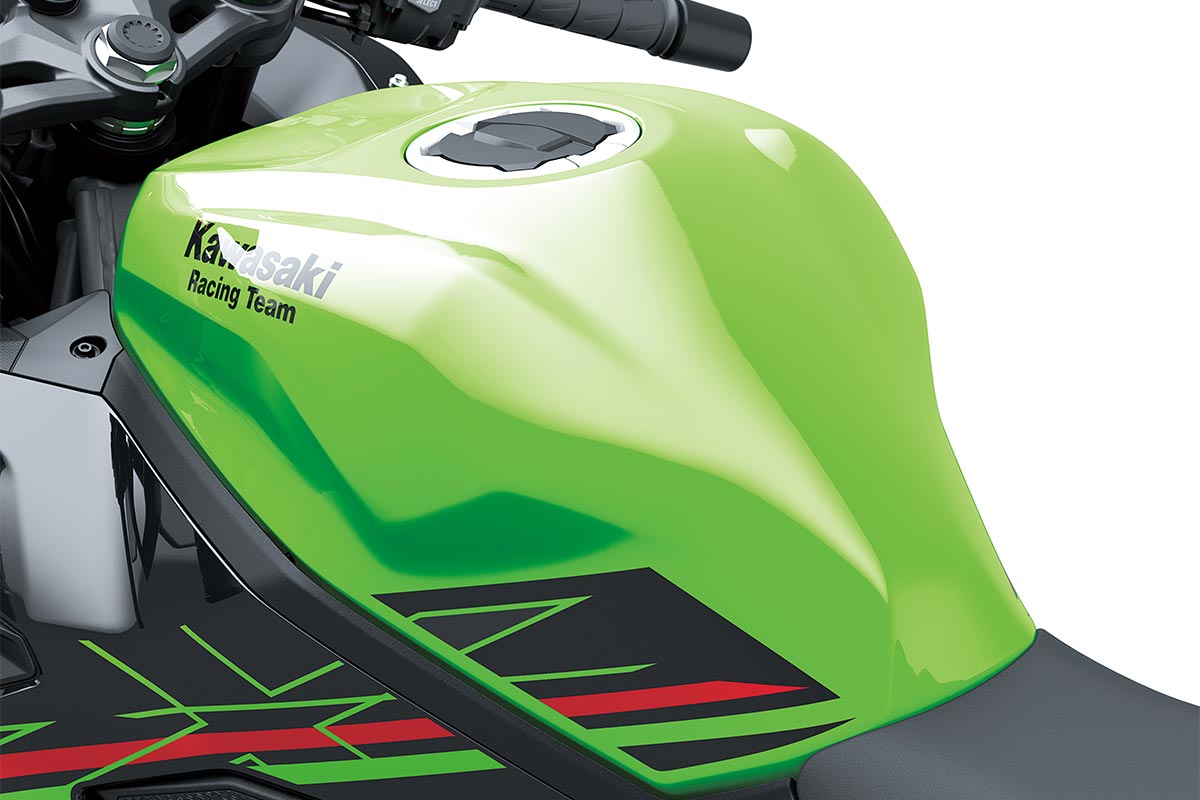

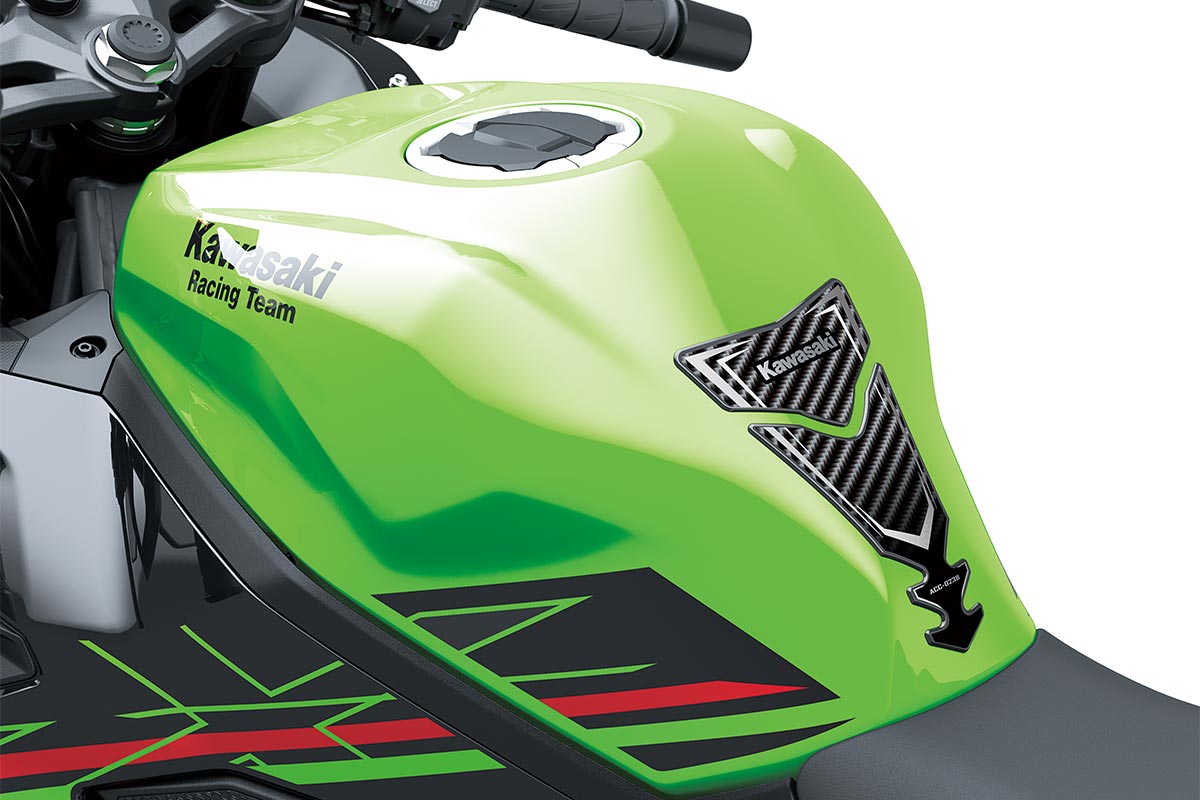

Fuel Capacity | 15 litres |
Model Code | ZX400SRFNN |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.
Specifications subject to change.
