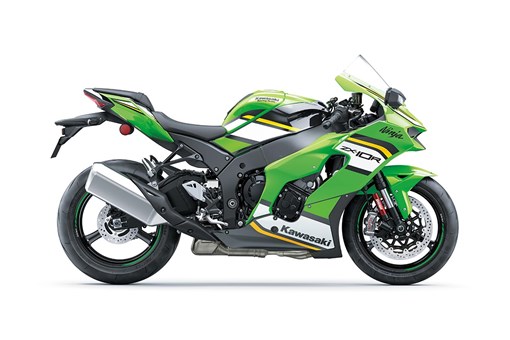

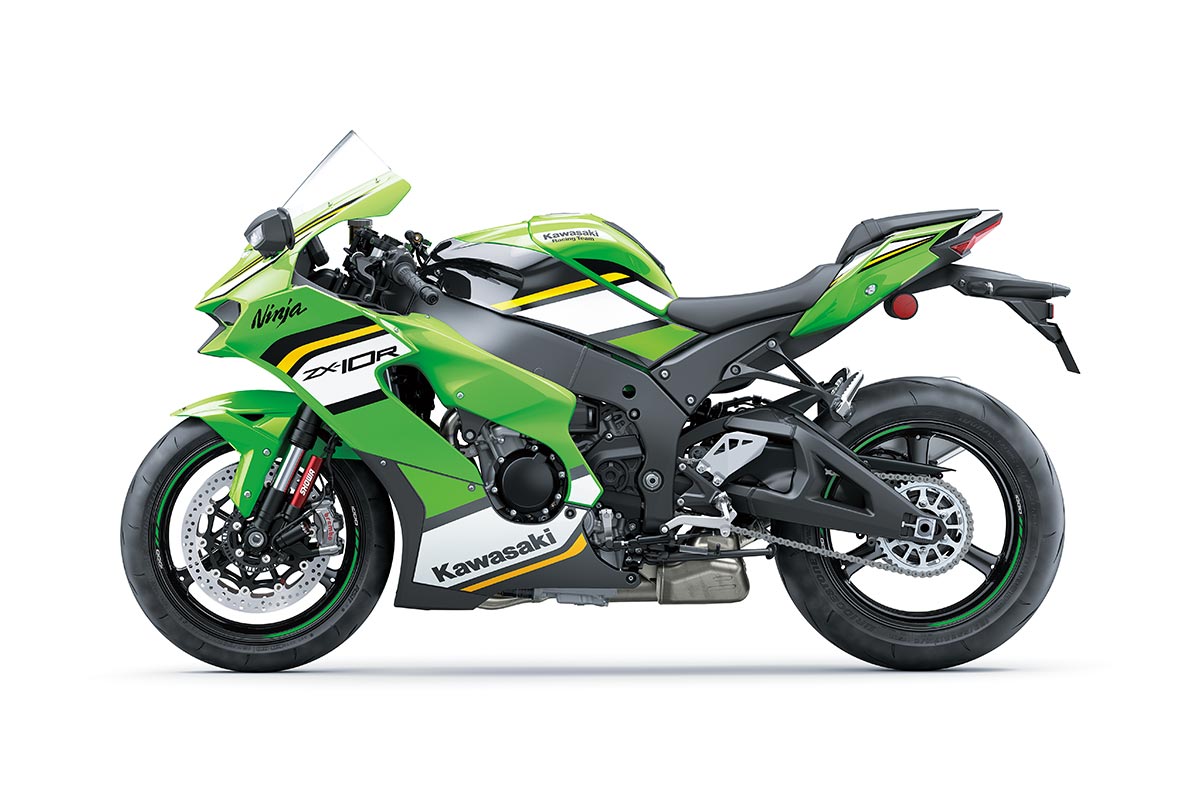

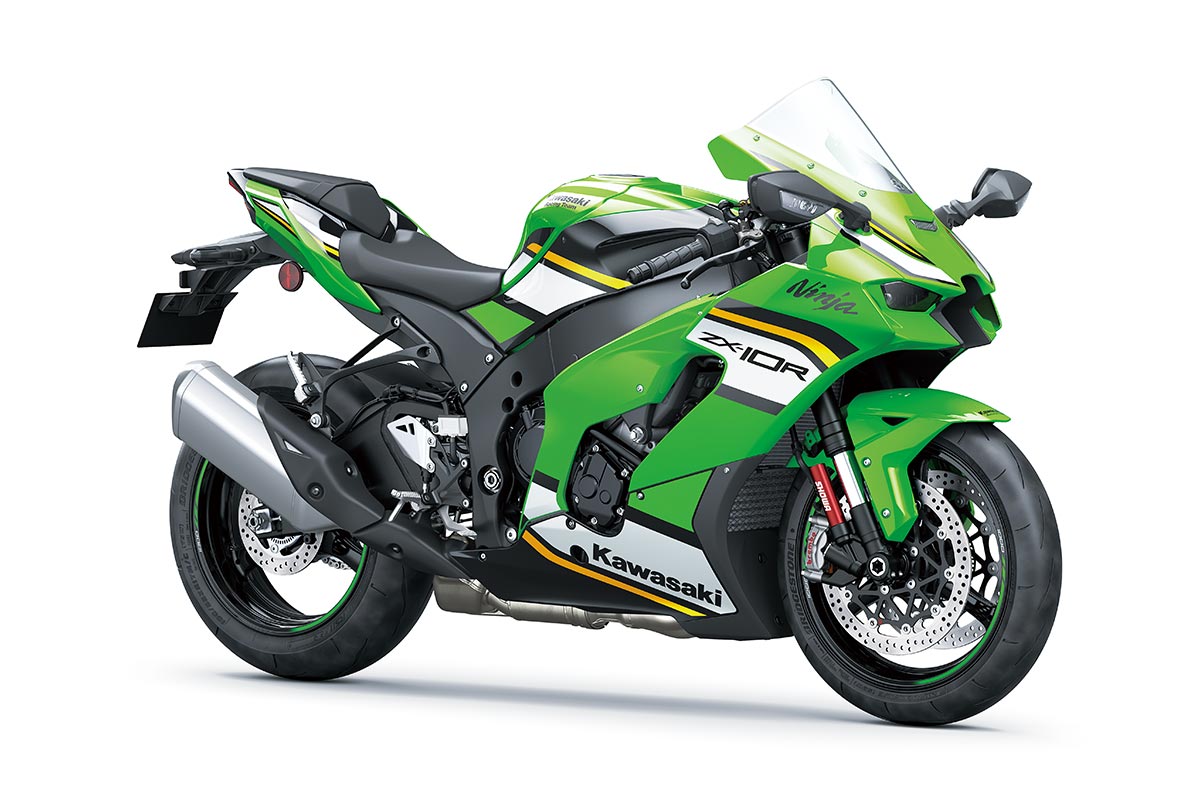

NINJA ZX-10R

FACE YOURSELF

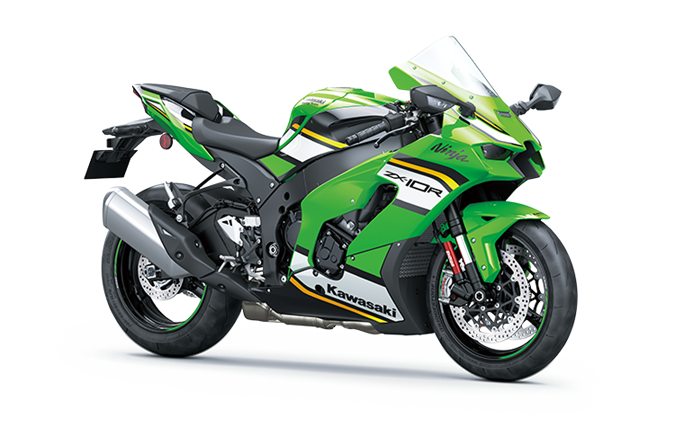

Lime Green / Ebony / Pearl Blizzard White

Lime Green / Ebony / Pearl Blizzard White

Powerful 998 cc
in-line four
Aerodynamic styling with
integrated winglets
Maximum Power 149.3 kW {203 PS} / 13,200 rpm
Maximum Power with Ram Air 156.8 kW {213 PS} / 13,200 rpm
Maximum Torque 114.9 Nm {11.7 kgfm} / 11,400 rpm
Engine 4-stroke In-Line Four
Displacement 998 cc
Bore x Stroke 76.0 x 55.0 mm
Compression Ratio 13.0:1
Valve System DOHC, 16 valves
Fuel System Fuel injection: ø47 mm x 4 with dual injection
Ignition Digital
Starting Electric
Cooling Liquid-cooled
Lubrication Forced lubrication, wet sump with air-cooled oil cooler
Transmission 6-speed, return
Primary Reduction Ratio 1.681 (79/47)
Gear Ratio: 1st 2.600 (39/15)
Gear Ratio: 2nd 2.158 (41/19)
Gear Ratio: 3rd 1.882 (32/17)
Gear Ratio: 4th 1.650 (33/20)
Gear Ratio: 5th 1.476 (31/21)
Gear Ratio: 6th 1.304 (30/23)
Final Reduction Ratio 2.412 (41/17)
Clutch Wet multi-disc, manual
Final Drive Chain
Frame Twin spar, cast aluminium
Front Suspension ø43 mm inverted fork (BFF) with external compression chamber, compression and rebound damping and spring preload adjustability, and top-out springs
Rear Suspension Horizontal Back-link, BFRC lite gas-charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability, and top-out spring
Front Wheel Travel 120 mm
Rear Wheel Travel 115 mm
Rake 25.0°
Trail 105 mm
Steering Angle (L/R) 27° / 27°
Front Tyre 120/70ZR17M/C (58W)
Rear Tyre 190/55ZR17M/C (75W)
Front Brake/s Dual semi-floating ø330 mm Brembo discs
Front Caliper/s Dual radial-mount, Brembo M50 monobloc, opposed 4-piston
Rear Brake ø220 mm disc
Rear Caliper Single-bore pin-slide
Dimensions (LxWxH) 2,085 x 750 x 1,185 mm
Wheelbase 1,450 mm
Road Clearance 135 mm
Seat Height 835 mm
Curb Weight* 207 kg
Fuel Capacity 17 litres
Model Code ZX1002LSFAN

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.

Specifications subject to change.
