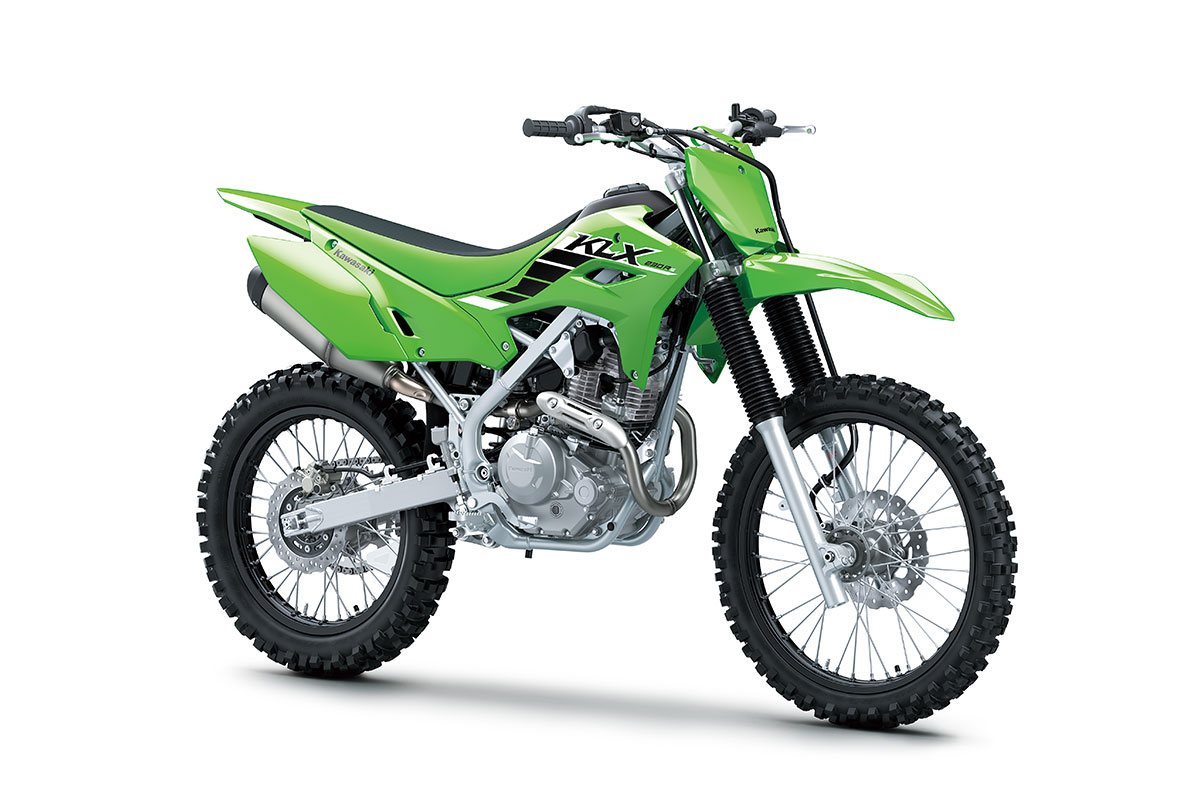

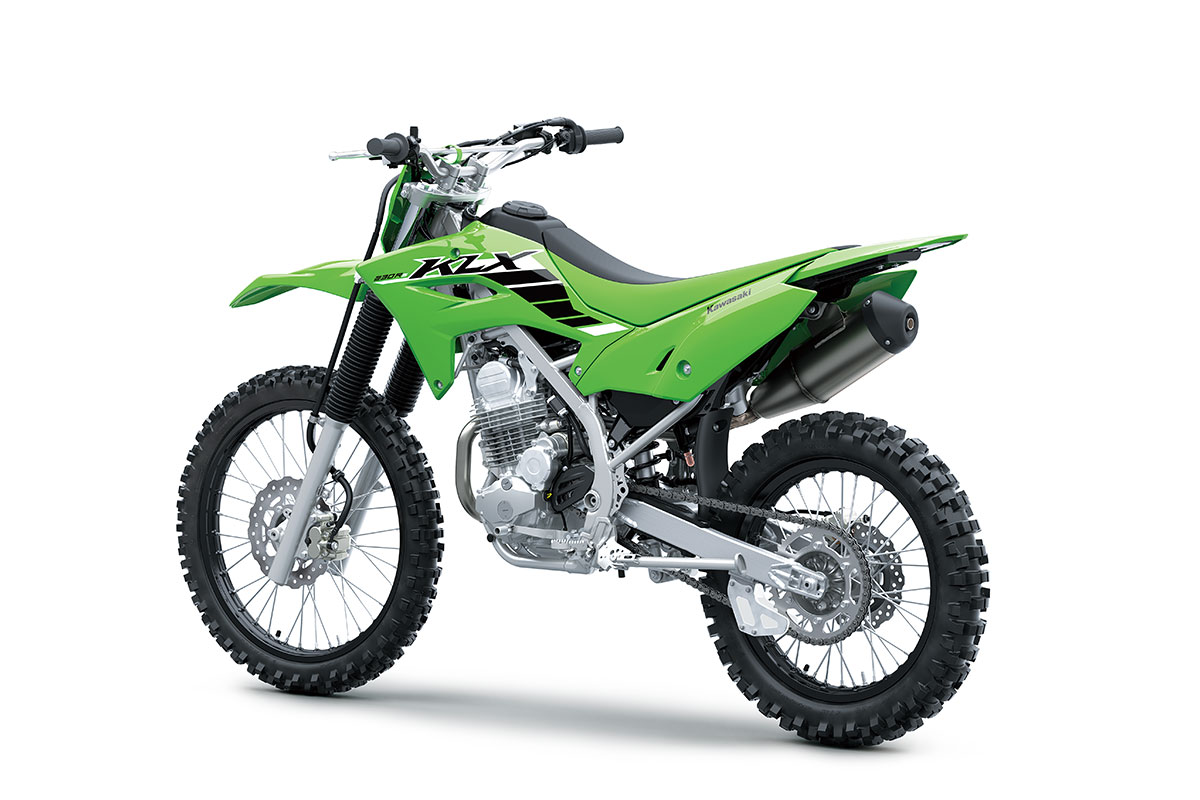

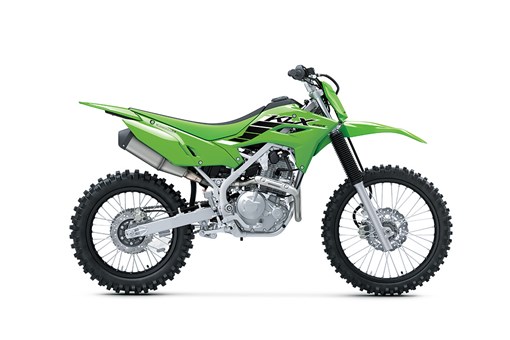

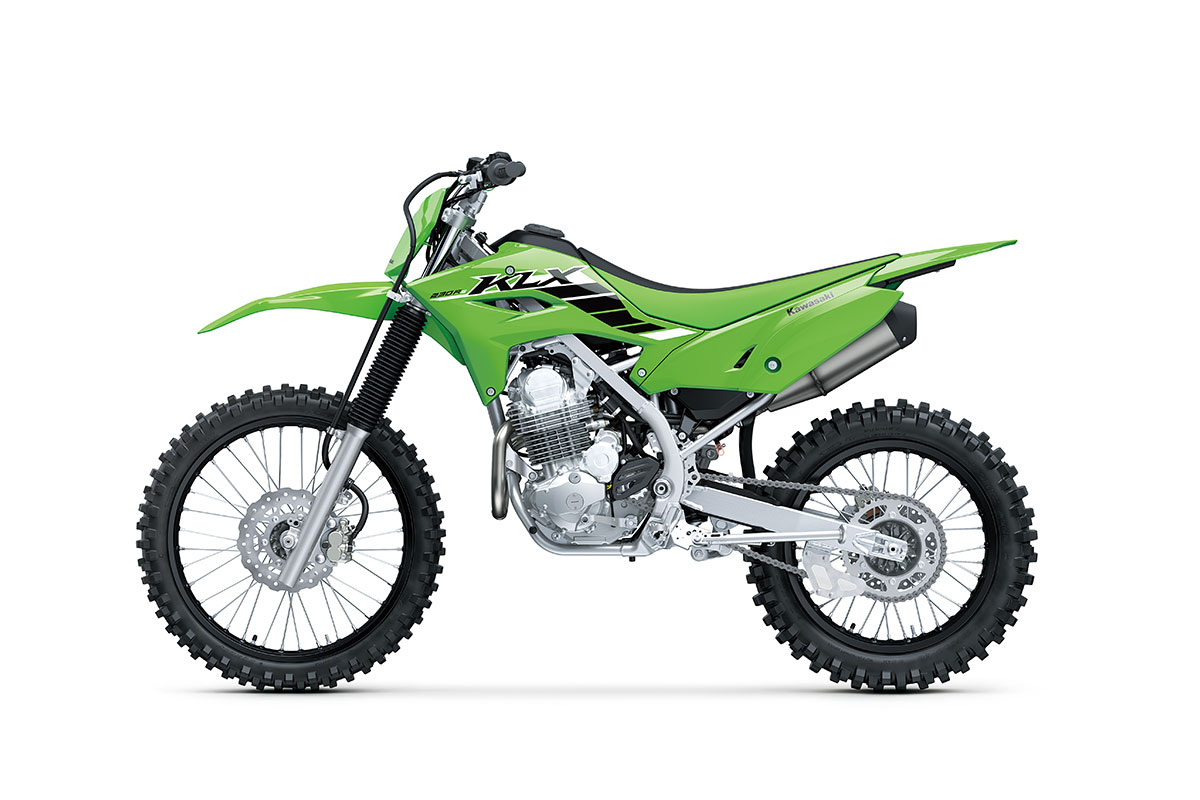

KLX230R S

Highly capable trail bike for off-roading

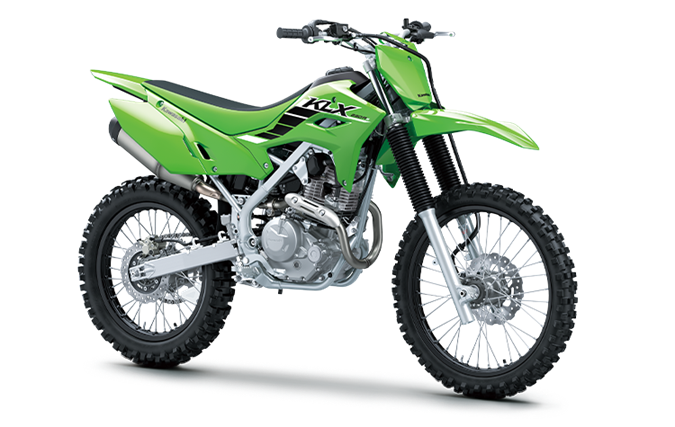

Lime Green

Lime Green

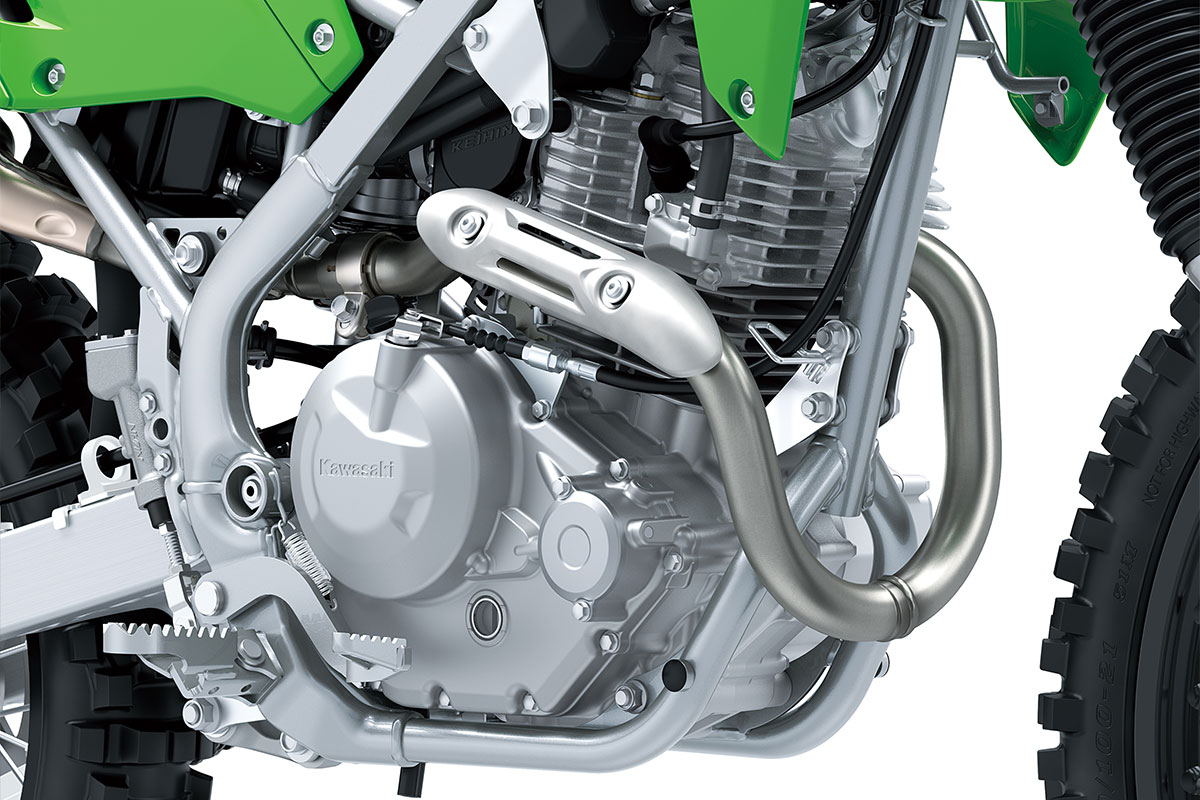

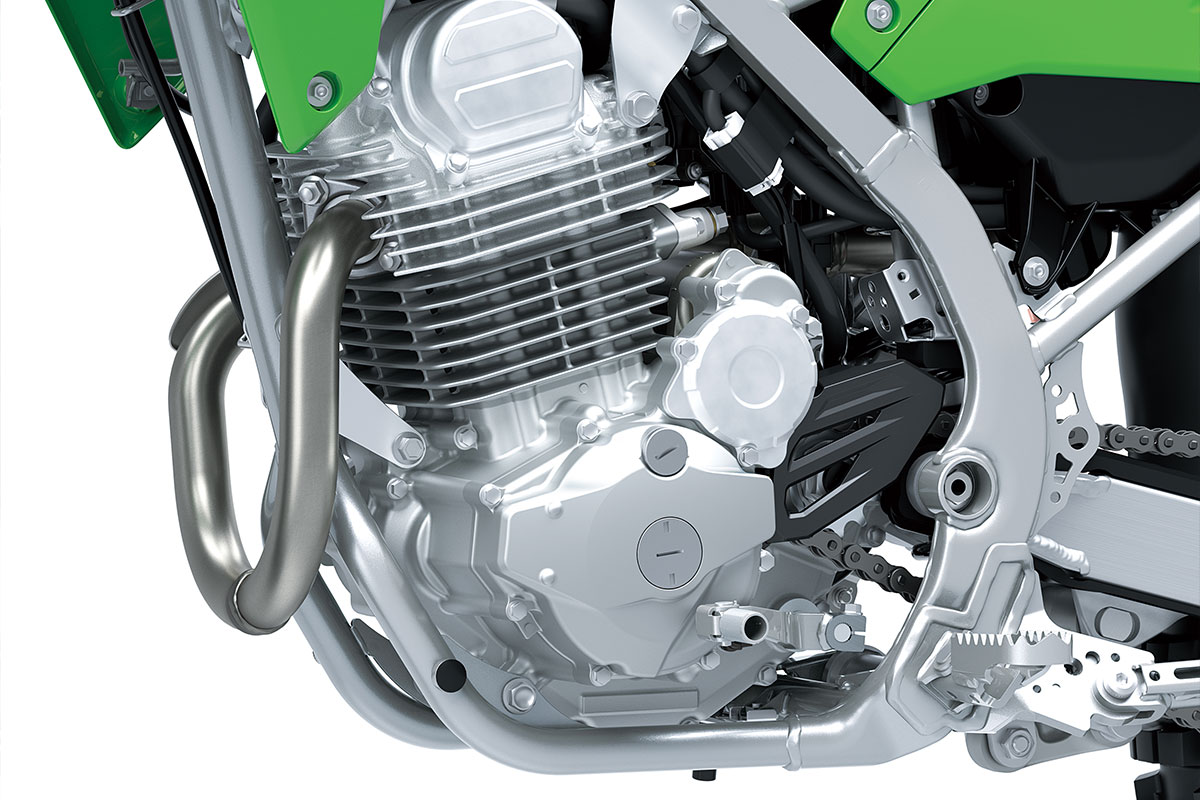

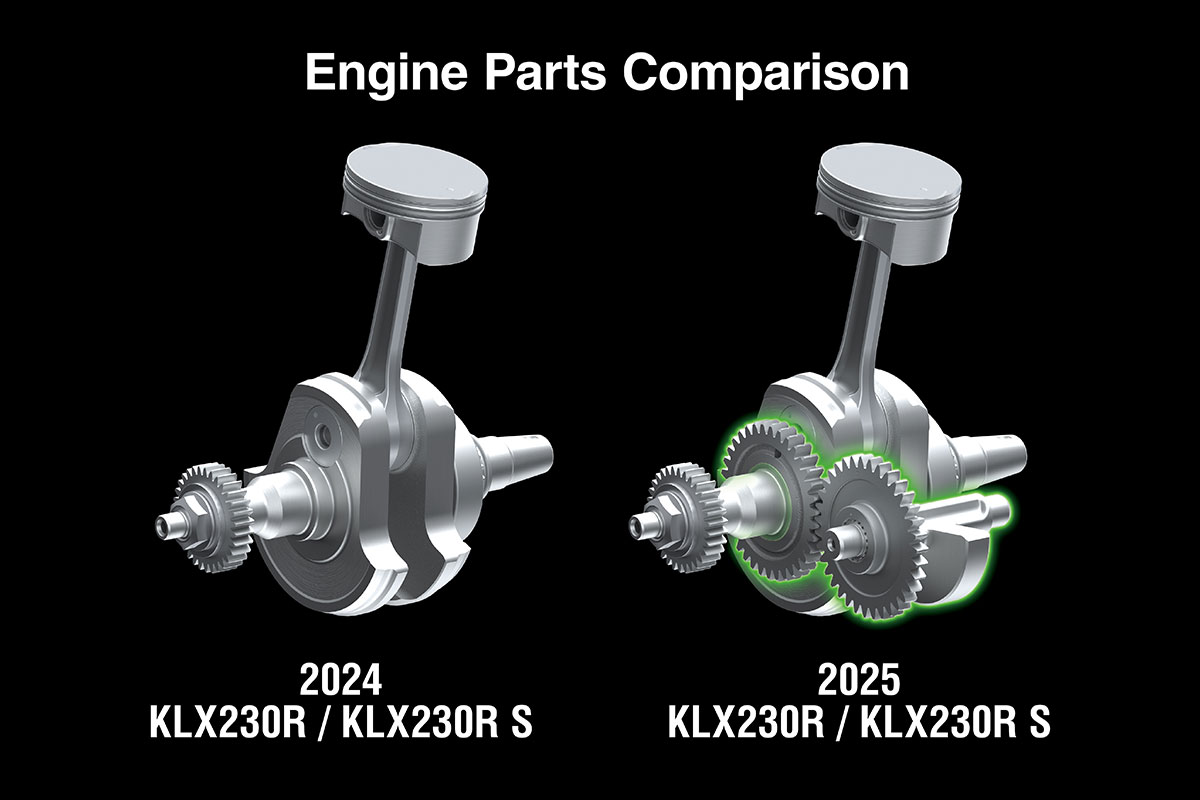

Updated 233 cc fuel-injected four-stroke
single

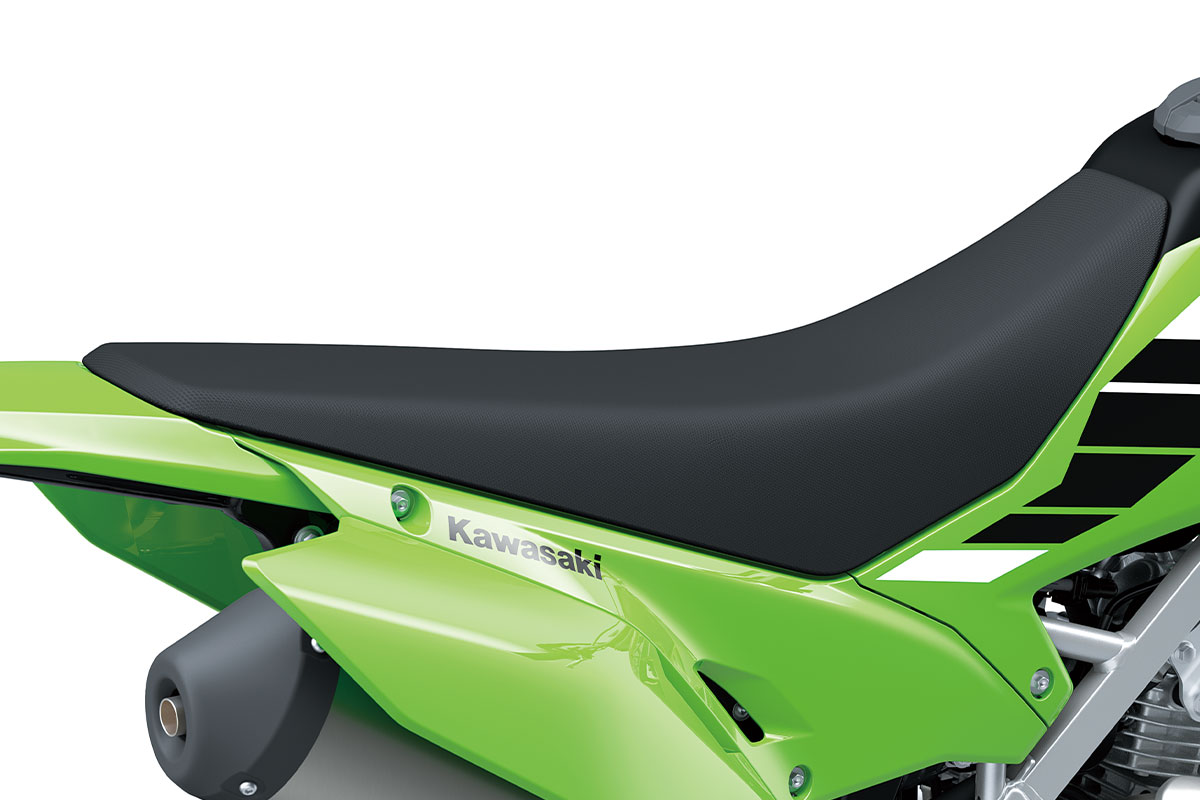

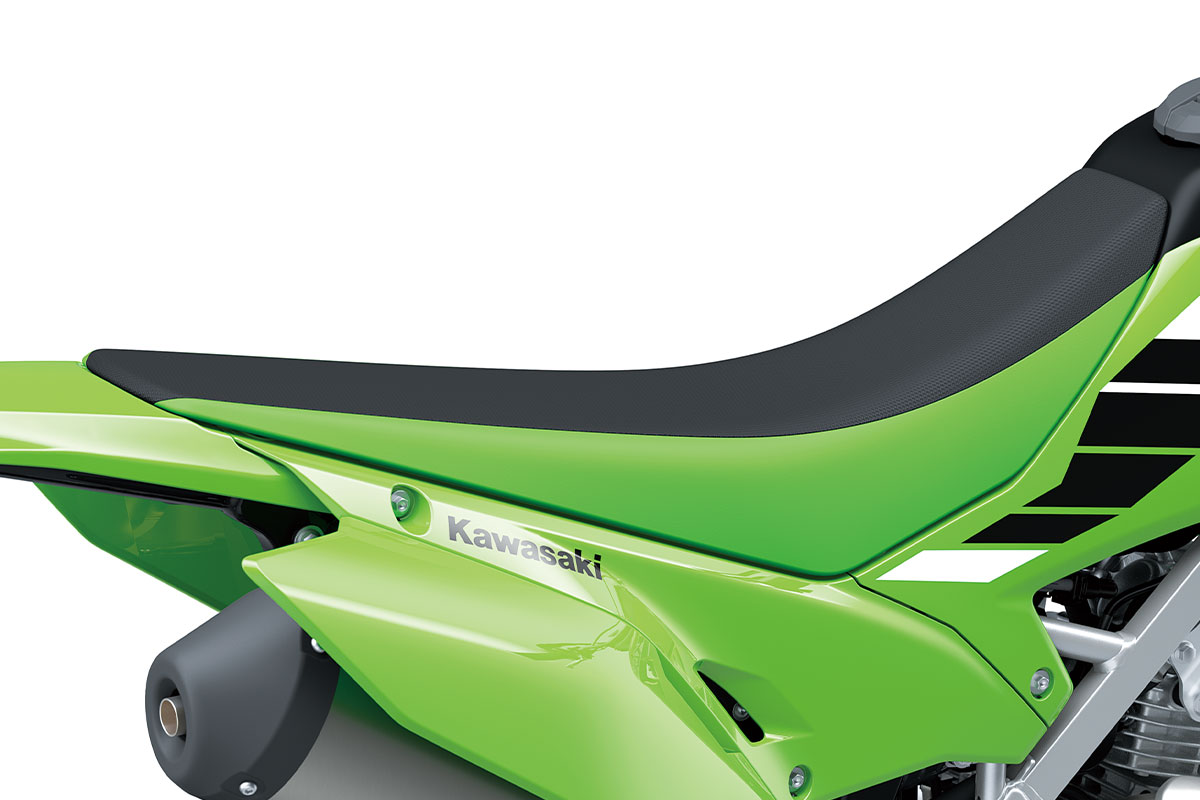

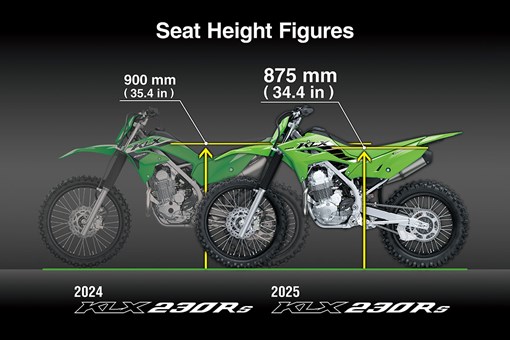

Reduced
seat height

Click on a technology to learn more.

Chassis Management Technology

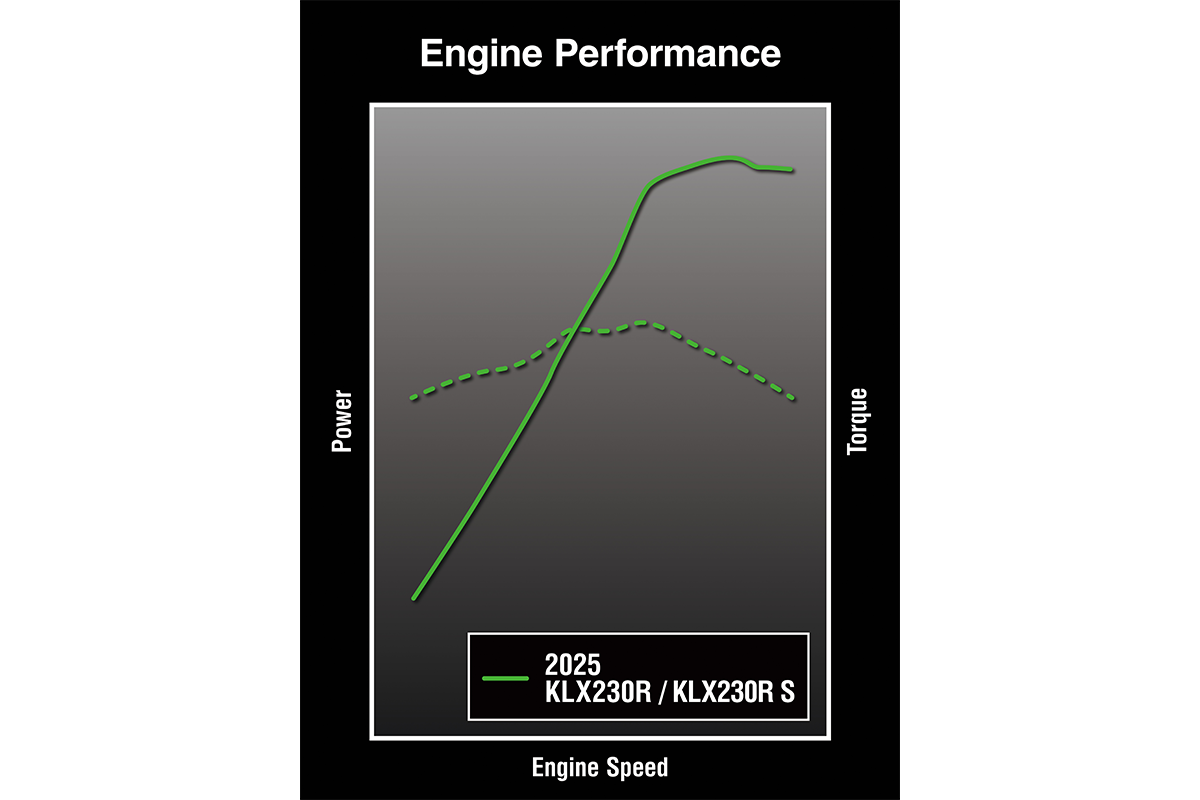

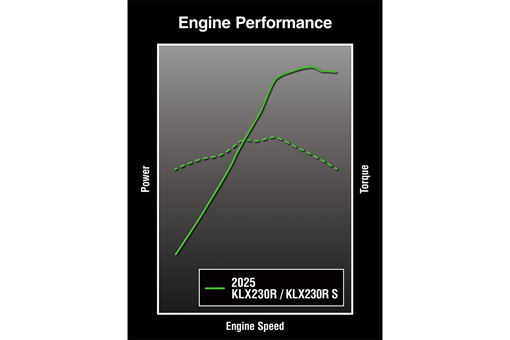

Maximum Power 13.8 kW {19 PS} / 8,000 rpm
Maximum Torque 19.6 Nm {2.0 kgfm} / 6,400 rpm
Engine 4-stroke Single
Displacement 233 cc
Bore x Stroke 67.0 x 66.0 mm
Compression Ratio 9.4:1
Valve System SOHC, 2 valves
Fuel System Fuel injection: ø32 mm x 1
Ignition Digital

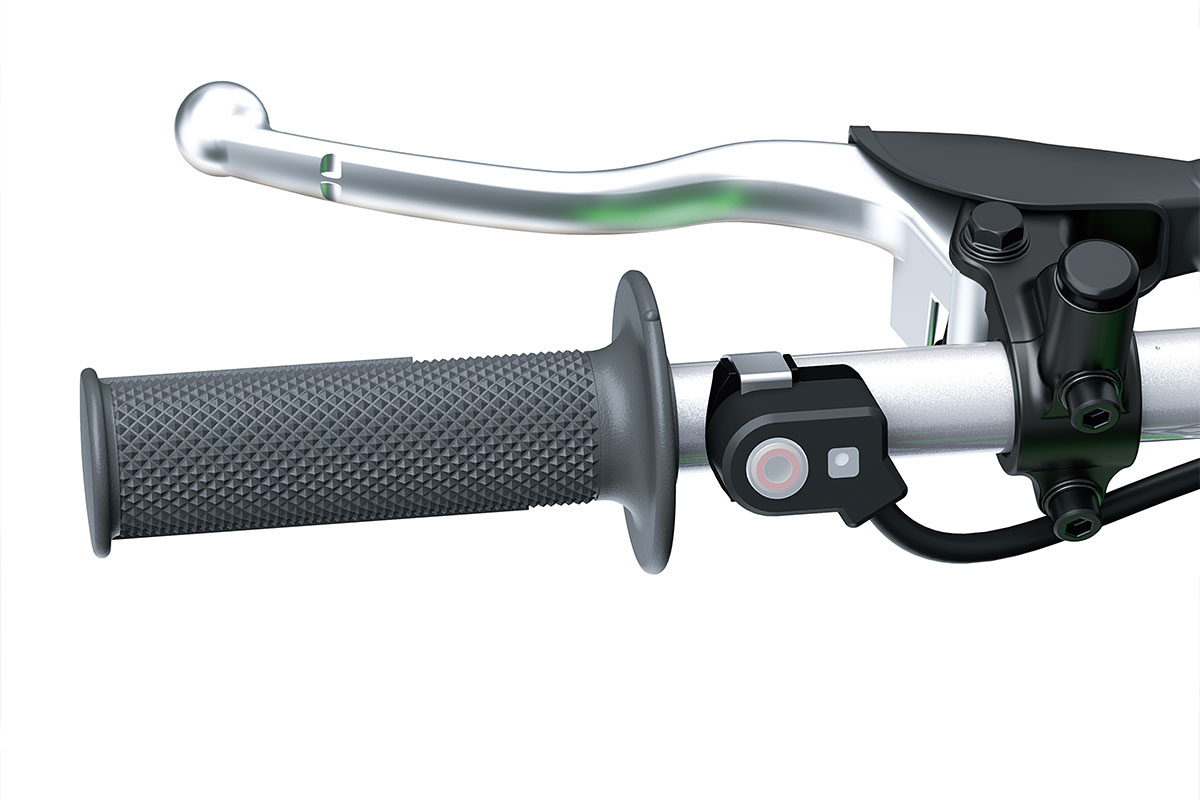

Starting Electric
Cooling Air-cooled
Lubrication Forced lubrication, wet sump
Transmission 6-speed, return
Primary Reduction Ratio 2.871 (89/31)
Gear Ratio: 1st 3.000 (39/13)
Gear Ratio: 2nd 2.067 (31/15)
Gear Ratio: 3rd 1.556 (28/18)
Gear Ratio: 4th 1.261 (29/23)
Gear Ratio: 5th 1.040 (26/25)
Gear Ratio: 6th 0.852 (23/27)
Final Reduction Ratio 3.538 (46/13)
Clutch Wet multi-disc, manual
Final Drive Chain

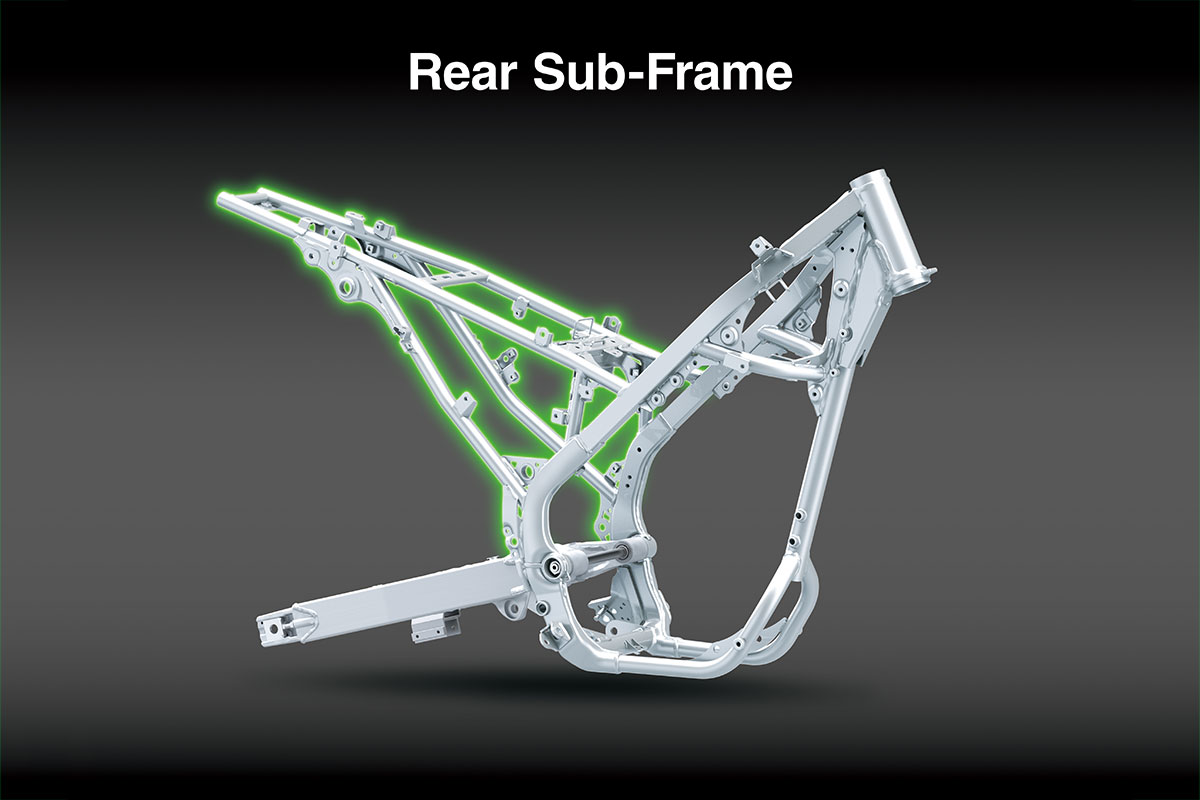

Frame Perimeter, high-tensile steel
Front Suspension ø37 mm telescopic fork

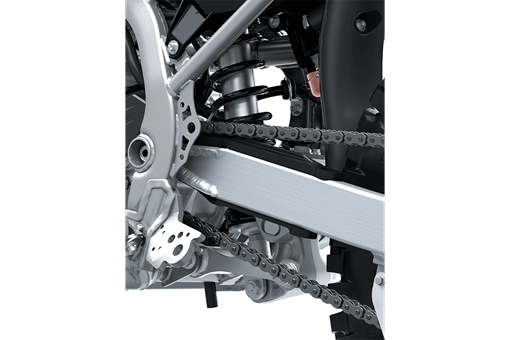

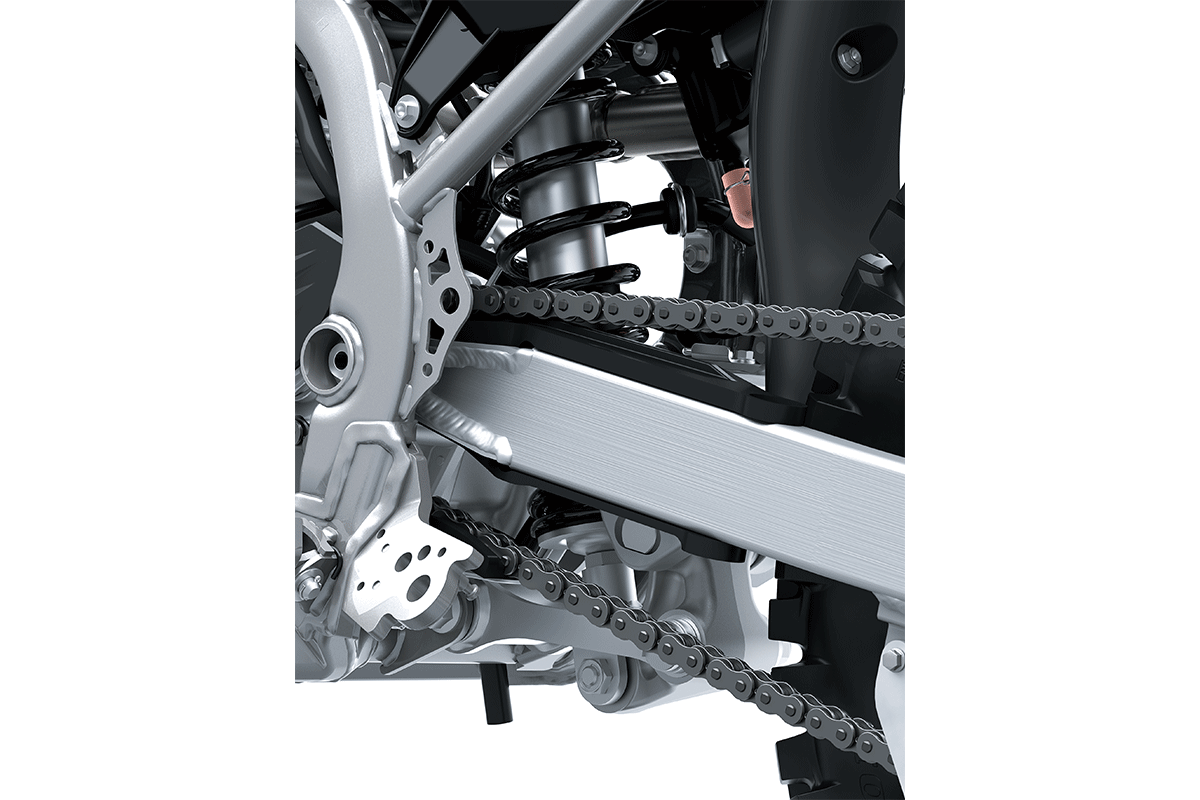

Rear Suspension New Uni Trak with adjustable spring preload
Front Wheel Travel 220 mm
Rear Wheel Travel 217 mm
Rake 24.6°
Trail 100 mm
Steering Angle (L/R) 45° / 45°
Front Tyre 80/100-21 51M
Rear Tyre 100/100-18 59M

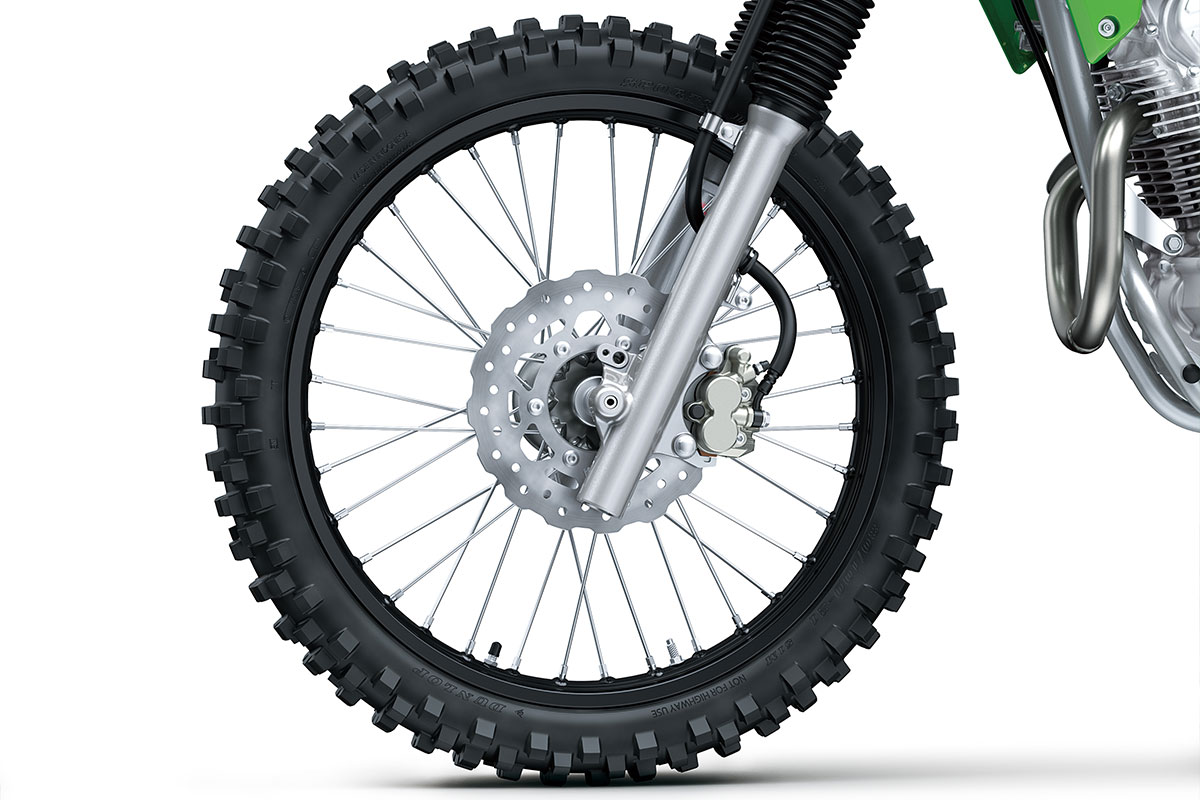

Front Brake/s ø240 mm petal disc
Front Caliper/s Dual-piston

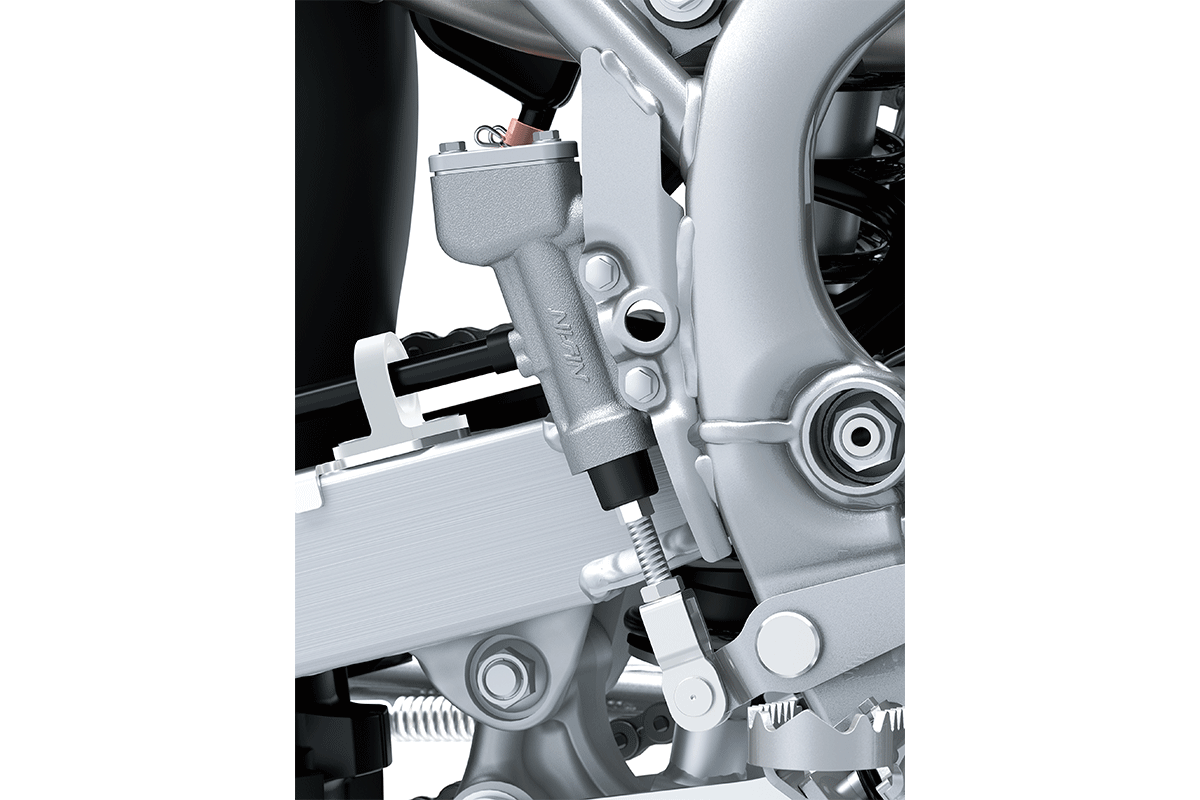

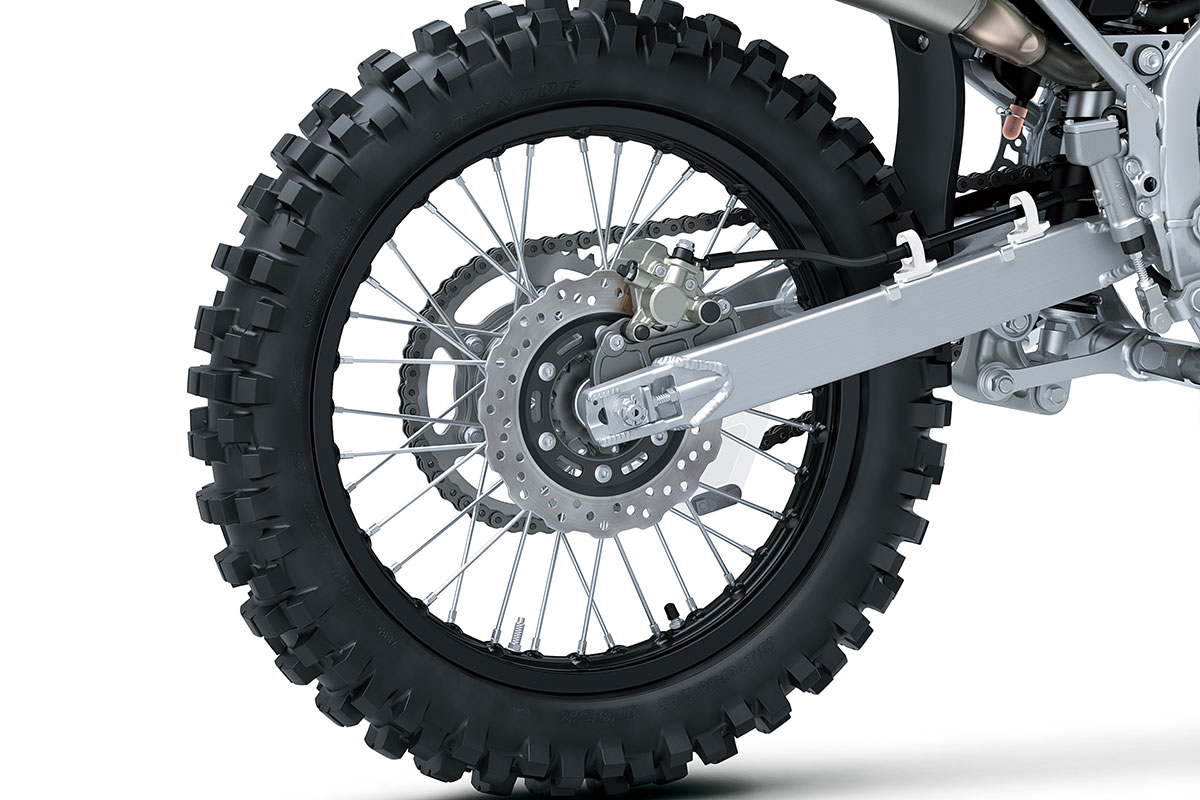

Rear Brake ø220 mm petal disc
Rear Caliper Single-piston
Dimensions (LxWxH) 2,035 x 845 x 1,185 mm
Wheelbase 1,355 mm
Road Clearance 270 mm
Seat Height 875 mm
Curb Weight* 119 kg

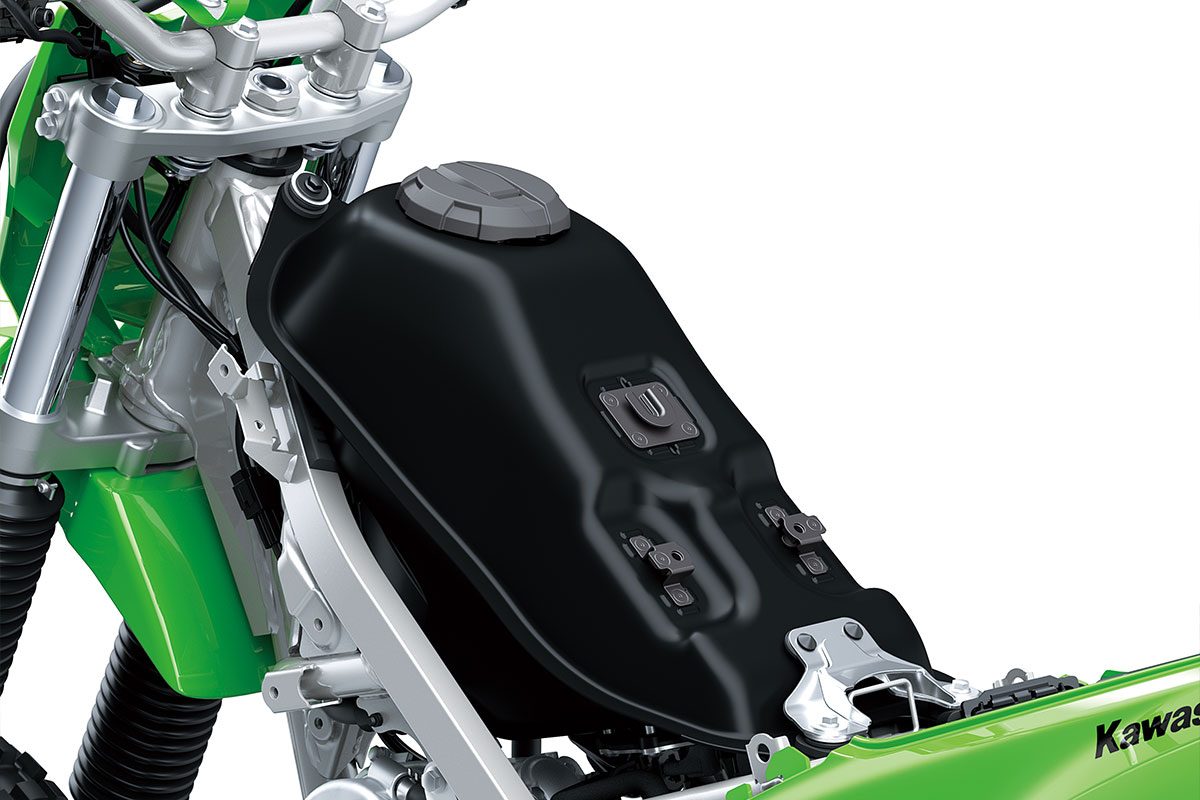

Fuel Capacity 7.6 litres
Model Code KLX232PSFNN

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.

Specifications subject to change.
