MODEL SPECS |
Click on a technology to learn more.
Engine Management Technology |
Chassis Management Technology |
Maximum Power | 13.2 kW {18 PS} / 8,000 rpm |
Maximum Torque | 18.0 Nm {1.8 kgfm} / 6,400 rpm |
Engine | 4-stroke Single |
Displacement | 233 cc |
Bore x Stroke | 67.0 x 66.0 mm |
Compression Ratio | 9.4:1 |
Valve System | SOHC, 2 valves |
Fuel System | Fuel injection: ø32 mm x 1 |
Ignition | Digital |
Starting | Electric |
Cooling | Air-cooled |
Lubrication | Forced lubrication, wet sump |
Transmission | 6-speed, return |
Primary Reduction Ratio | 2.871 (89/31) |
Gear Ratio: 1st | 3.000 (39/13) |
Gear Ratio: 2nd | 2.067 (31/15) |
Gear Ratio: 3rd | 1.556 (28/18) |
Gear Ratio: 4th | 1.261 (29/23) |
Gear Ratio: 5th | 1.040 (26/25) |
Gear Ratio: 6th | 0.852 (23/27) |
Final Reduction Ratio | 3.214 (45/14) |
Clutch | Wet multi-disc, manual |
Final Drive | Chain |
Frame | Perimeter, high-tensile steel |
Front Suspension | ø37 mm telescopic fork |
Rear Suspension | New Uni Trak with adjustable spring preload |

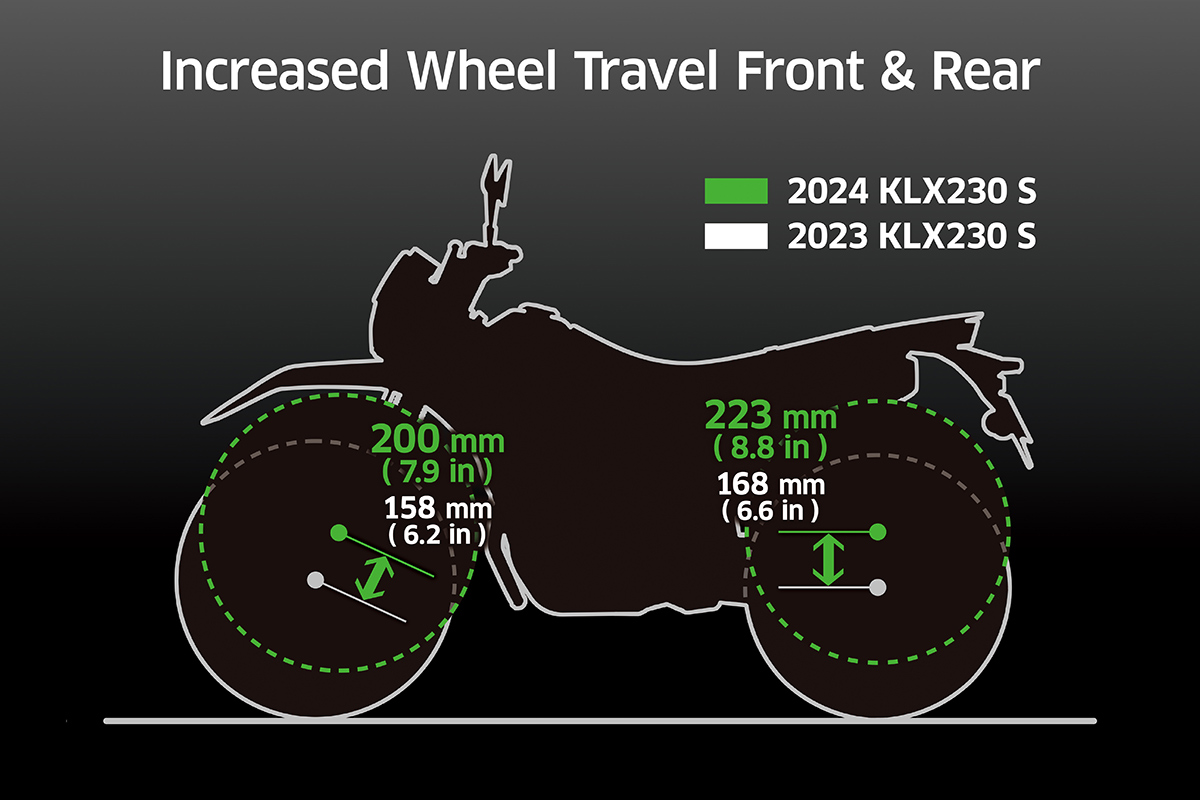

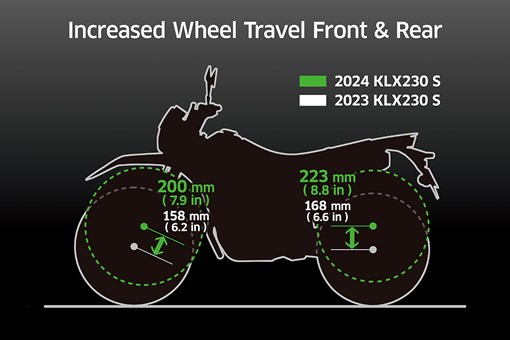

Front Wheel Travel | 200 mm |
Rear Wheel Travel | 223 mm |
Rake | 24.6° |
Trail | 96 mm |
Steering Angle (L/R) | 45° / 45° |
Front Tyre | 2.75-21 45P |
Rear Tyre | 4.10-18 59P |
Front Brake/s | ø265 mm petal disc |
Front Caliper/s | Dual-piston |
Rear Brake | ø220 mm petal disc |
Rear Caliper | Single-piston |
Dimensions (LxWxH) | 2,080 x 845 x 1,140 mm |
Wheelbase | 1,365 mm |
Road Clearance | 240 mm |
Seat Height | 845 mm |
Curb Weight* | 132 kg |
Fuel Capacity | 7.6 litres |
Model Code | KLX232CRFNN |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.
Specifications subject to change.
