Units available in Australia are single-seat only (without rear footpegs).

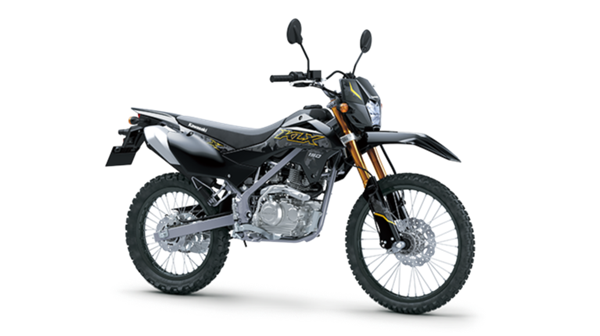

KLX150
GET OUT AND PLAY
Units available in Australia are single-seat only (without rear footpegs).
MODEL SPECS |
| Maximum Power | 8.6 kW {12 PS} / 8,000 rpm |
| Maximum Torque | 11.3 Nm {1.2 kgfm} / 6,500 rpm |
| Engine | 4-stroke Single |
| Displacement | 144 cc |
| Bore x Stroke | 58.0 x 54.4 mm |
| Compression Ratio | 9.5:1 |
| Valve System | SOHC, 2 valves |
| Fuel System | Carburettor: NCV24 |
| Ignition | DC-CDI |
| Starting | Electric & Kick |
| Cooling | Air-cooled |
| Lubrication | Forced lubrication, wet sump |
| Transmission | 5-speed, return |
| Primary Reduction Ratio | 2.880 (72/25) |
| Gear Ratio: 1st | 2.917 (35/12) |
| Gear Ratio: 2nd | 2.000 (32/16) |
| Gear Ratio: 3rd | 1.474 (28/19) |
| Gear Ratio: 4th | 1.182 (26/22) |
| Gear Ratio: 5th | 1.000 (24/24) |
| Final Reduction Ratio | 3.714 (52/14) |
| Clutch | Wet multi-disc, manual |
| Final Drive | Chain |
| Frame | Perimeter, steel |
| Front Suspension | ø35 mm inverted fork |
| Rear Suspension | Uni Trak, single shock with adjustable spring preload |
| Front Wheel Travel | 185 mm |
| Rear Wheel Travel | 192 mm |
| Rake | 26.9° |
| Trail | 110 mm |
| Front Tyre | 2.75-21 45P |
| Rear Tyre | 4.10-18 59P |
| Front Brake/s | ø240 mm petal disc |
| Front Caliper/s | Dual-piston |
| Rear Brake | ø190 mm petal disc |
| Rear Caliper | Single-piston |
| Dimensions (LxWxH) | 2,050 x 830 x 1,155 mm |
| Wheelbase | 1,345 mm |
| Road Clearance | 300 mm |
| Seat Height | 865 mm |
| Curb Weight* | 118 kg |
| Fuel Capacity | 6.9 litres |
| Model Code | KLX150KRFNN |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.
Specifications subject to change.
