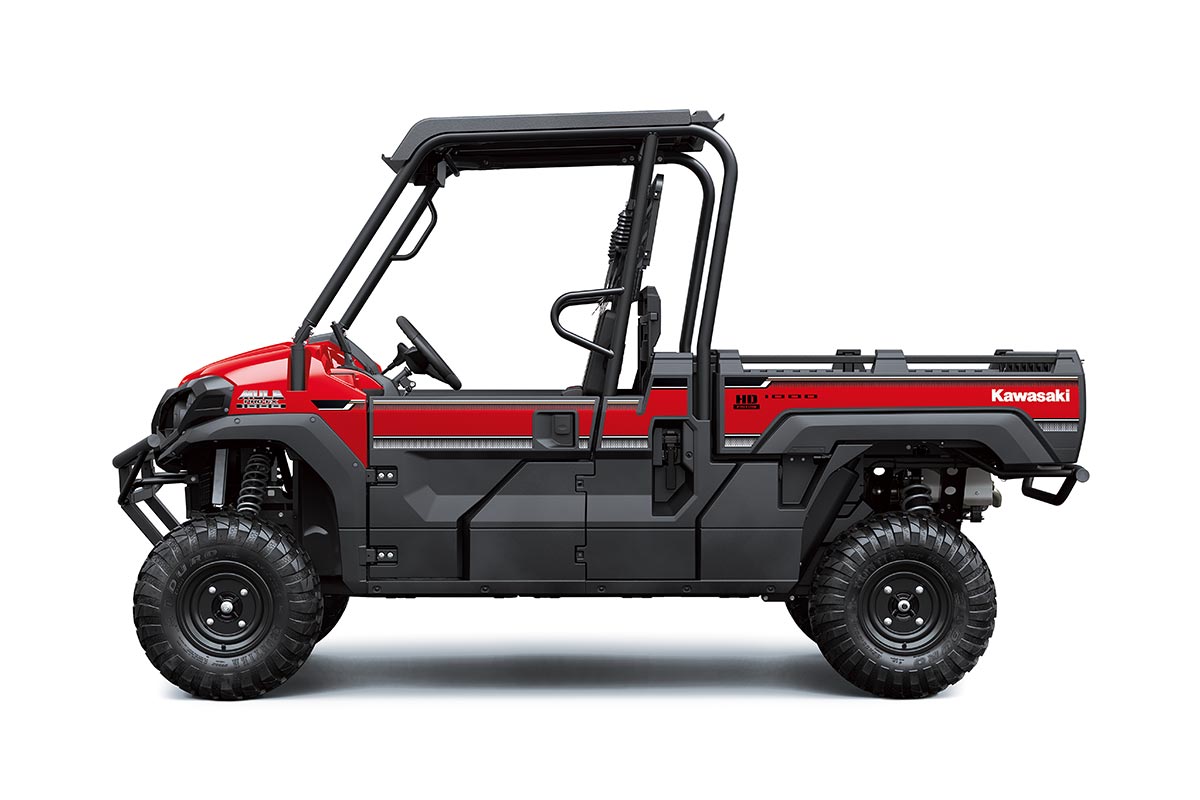

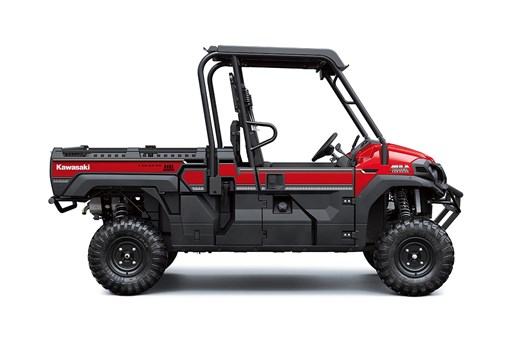

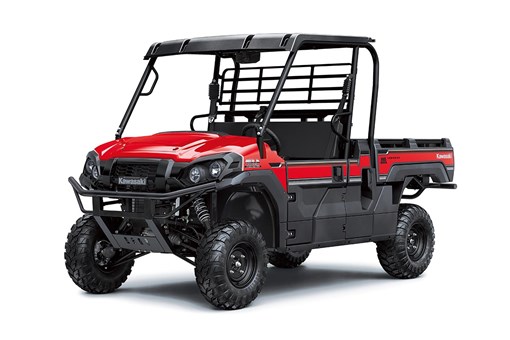

MULE PRO-FX 1000 HD EDITION

DEPENDABLE 3-PASSENGER UTILITY SIDE X SIDE

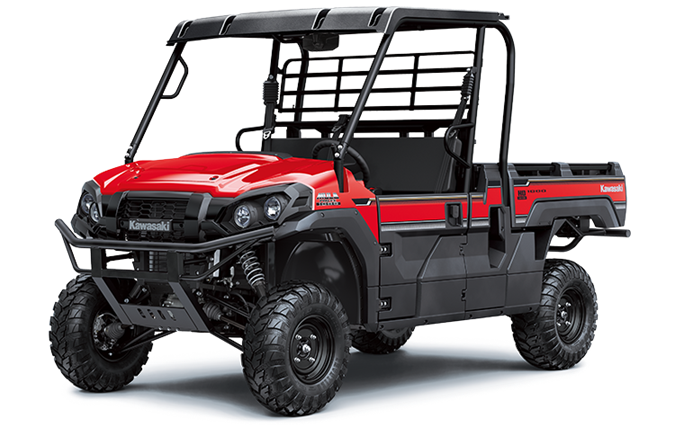

Firecracker Red

Firecracker Red

Kawasaki-Built, Liquid-Cooled
999 cc Parallel-Twin
Self-levelling
Rear suspension

Click on a technology to learn more.

Engine Management Technology
Chassis Management Technology
Maximum Power 52 kW {71 PS} / 6,500 rpm
Maximum Torque 83 Nm {8.5 kgfm} / 4,500 rpm
Engine 4-stroke Parallel Twin
Displacement 999 cc
Bore x Stroke 92.0 x 75.1 mm
Compression Ratio 10.1:1
Valve System DOHC, 4 valves per cylinder
Fuel System Fuel injection: ø38 mm x 1
Ignition Digital
Starting Electric
Cooling Liquid-cooled
Lubrication Forced lubrication, wet sump
Transmission Dual-range (high/low) CVT with reverse
Primary Reduction Ratio 3.28 ~ 0.70 (belt converter)
Gear Ratio: Forward (High) 1.668 (34/33 x 34/21)
Gear Ratio: Forward (Low) 3.312 (45/22 x 34/21)
Gear Ratio: Reverse 2.571 (27/17 x 34/21)
Final Reduction Ratio: Front 6.382 (31/17 x 35/10)
Final Reduction Ratio: Rear 6.245 (31/21 x 55/13)
Final Drive 2WD/4WD, shaft, dual-mode differential
Frame Ladder type, tubular steel
Front Suspension Double wishbone
Rear Suspension Double wishbone, self-levelling suspension
Front Wheel Travel 279 mm
Rear Wheel Travel 256 mm
Steering Rack and pinion with Electric Power Steering
Rake 3.7°
Trail 20 mm
Steering Angle (L/R) 40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT)
Front Tyres 26 x 9.00R12 4PR
Rear Tyres 26 x 11.00R12 4PR
Front Brakes Dual ø212 mm discs
Front Calipers Two-piston
Rear Brake/s Dual ø212 mm discs
Rear Caliper/s Single-piston
Parking Brake Dual discs (mechanical)
Dimensions (LxWxH) 3,470 x 1,625 x 2,060 mm
Wheelbase 2,345 mm
Road Clearance 300/301 mm (standard/max preload)
Seat Height 920 mm
Curb Weight* 858 kg
Estimated Dry Weight** 824 kg
Fuel Capacity 30 litres
Tread Front / Rear 1,373 mm / 1,307 mm
Turning Radius 4.8 m
Cargo Bed Dimensions (LxWxH) 1,375 x 1,355 x 280 mm
Cargo Bed Capacity 453 kg
Seating Capacity 3
Vehicle Load Capacity 733 kg
Towing Capacity 907 kg
Lighting 2x halogen, 2x LED headlights
Model Code KAF1000LSSNN

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.

Specifications subject to change.
