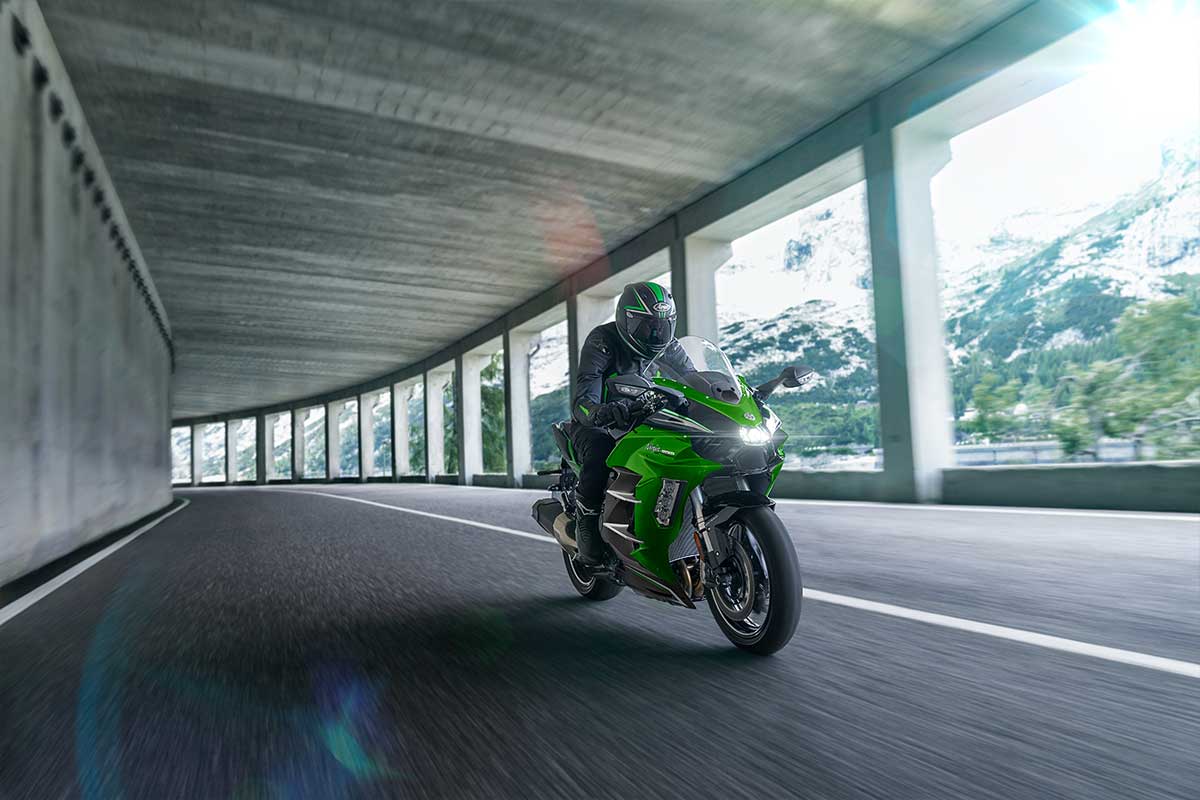

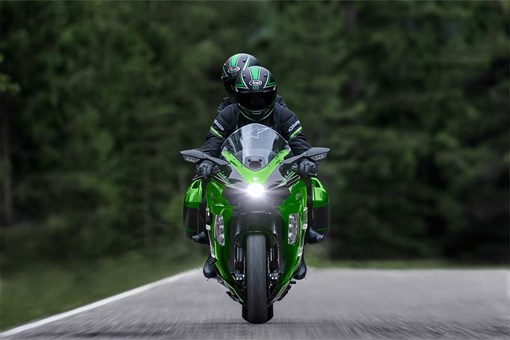

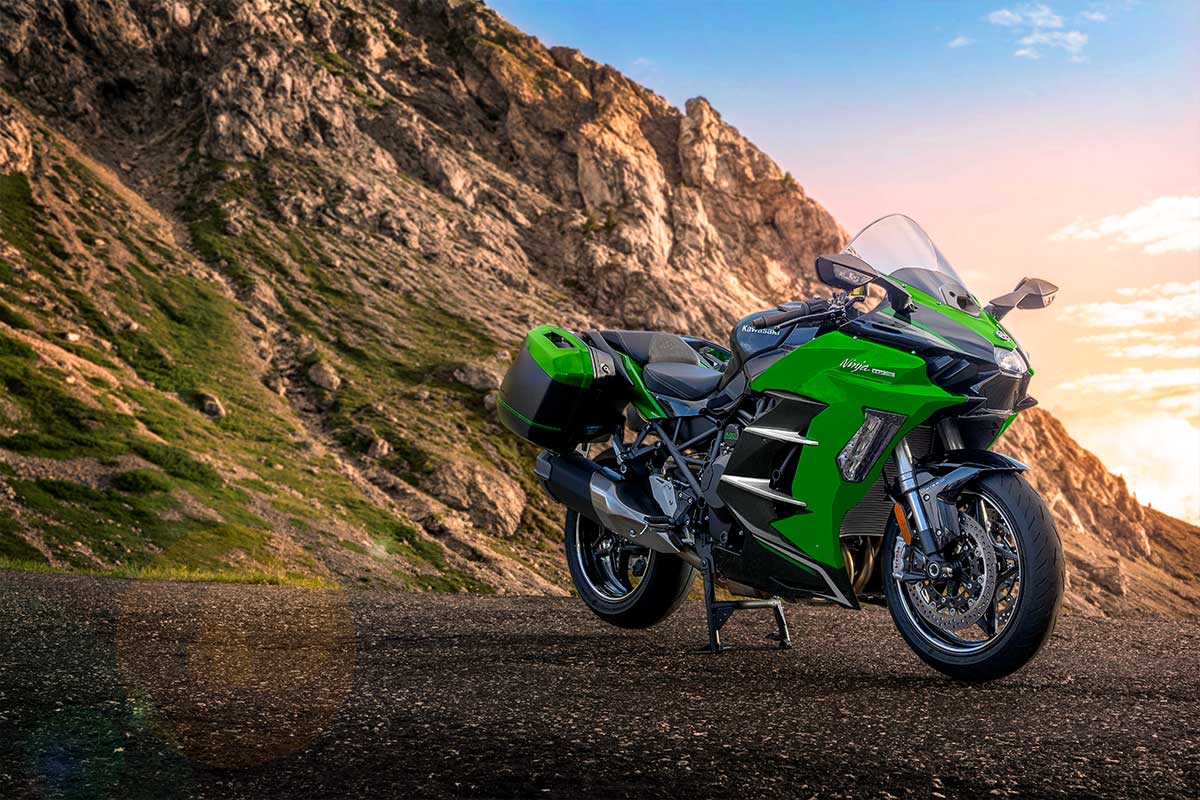

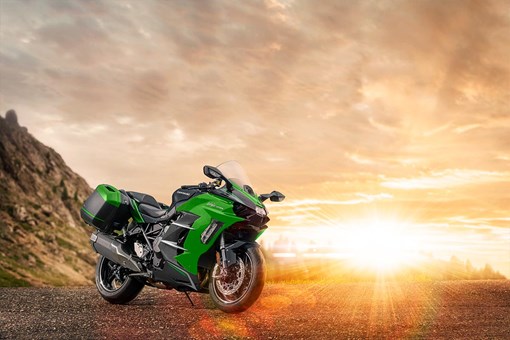

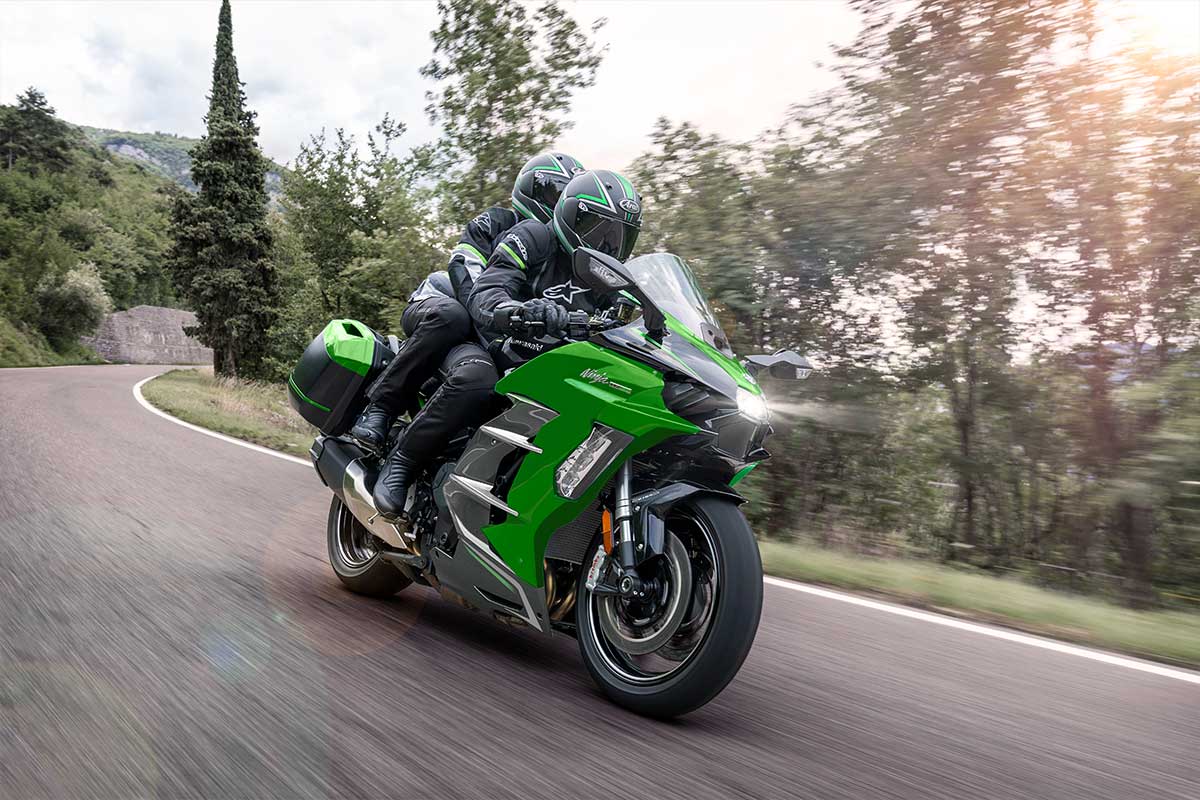

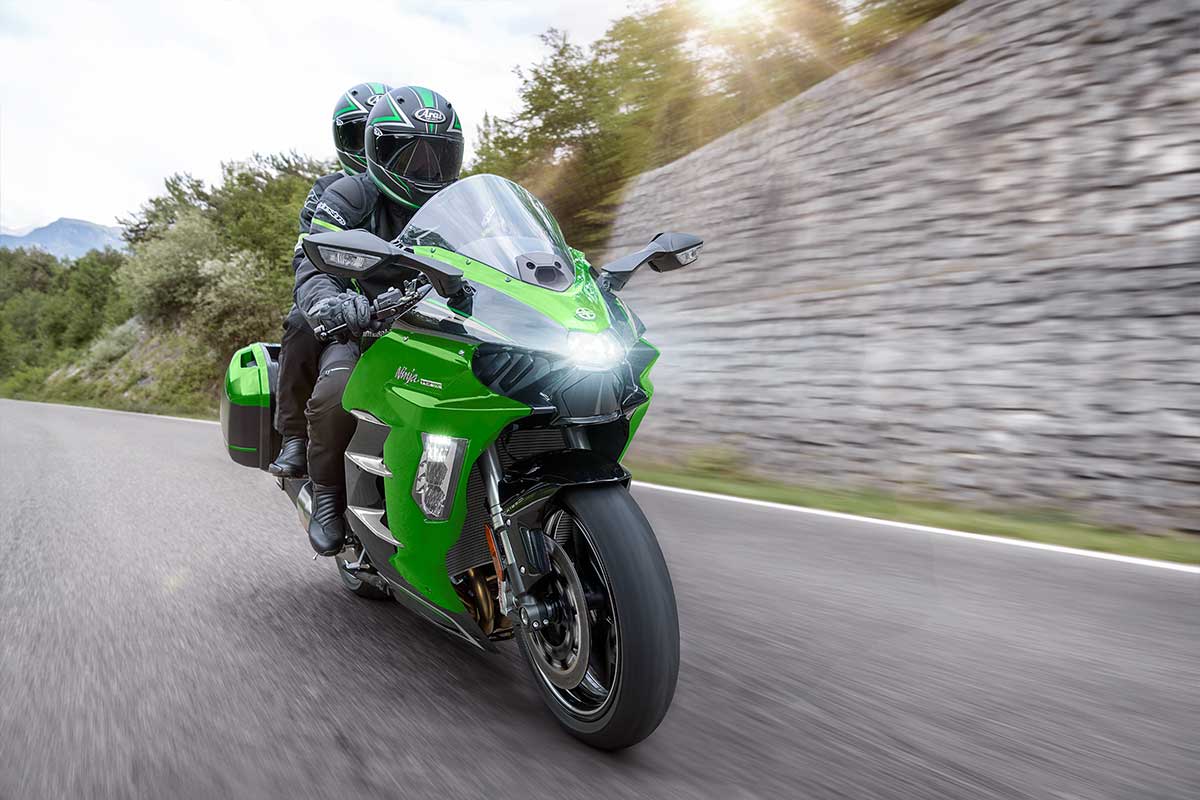

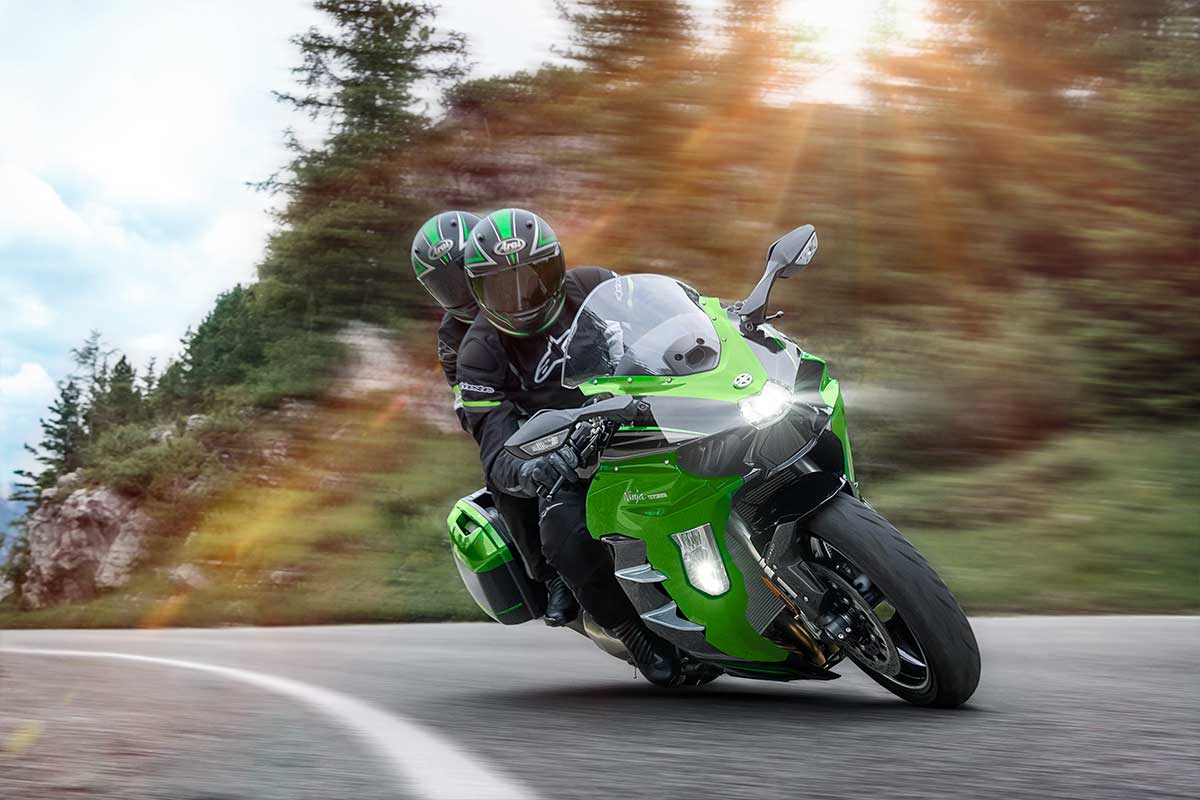

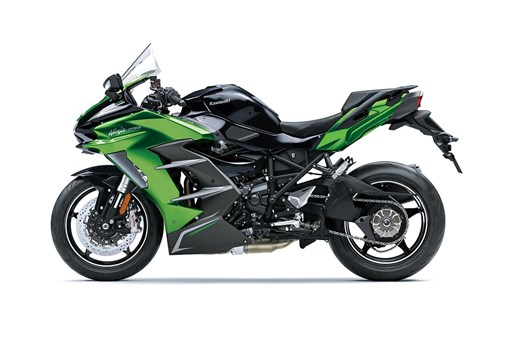

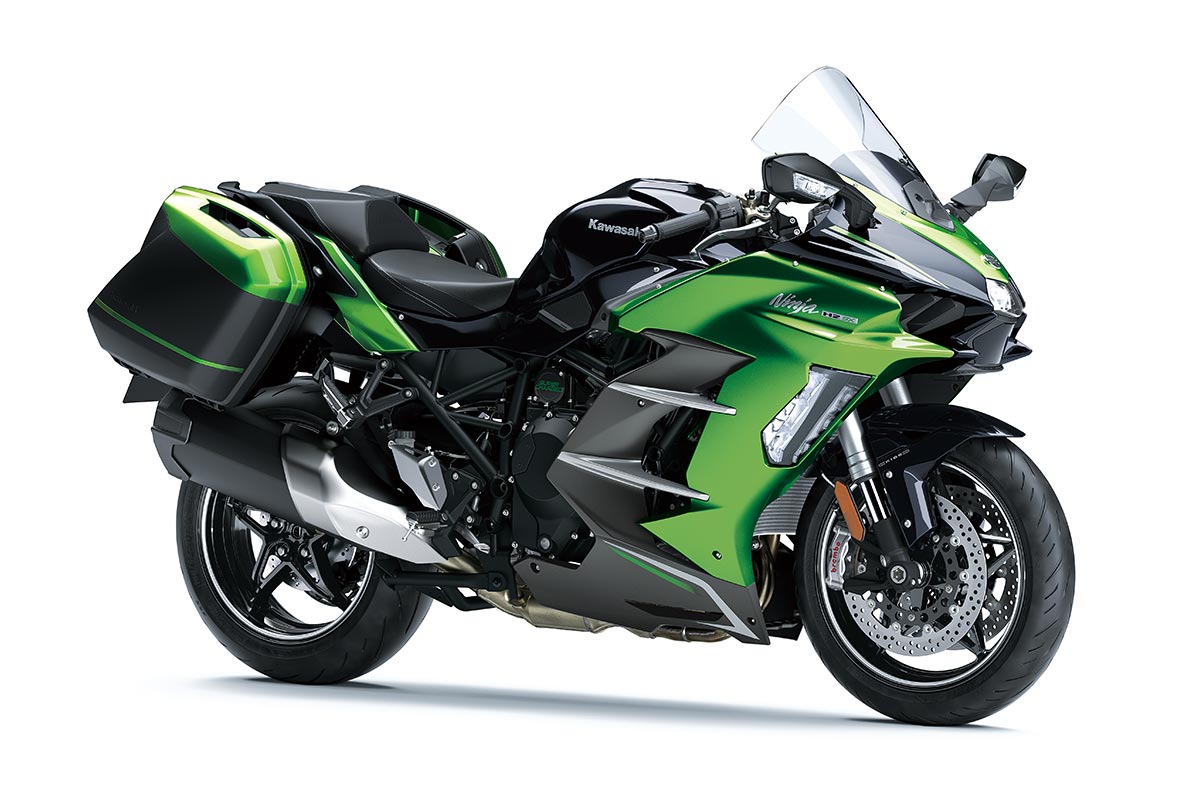

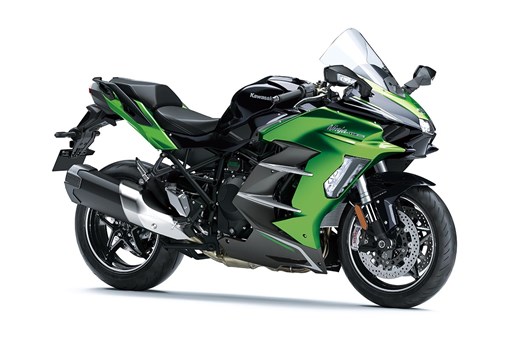

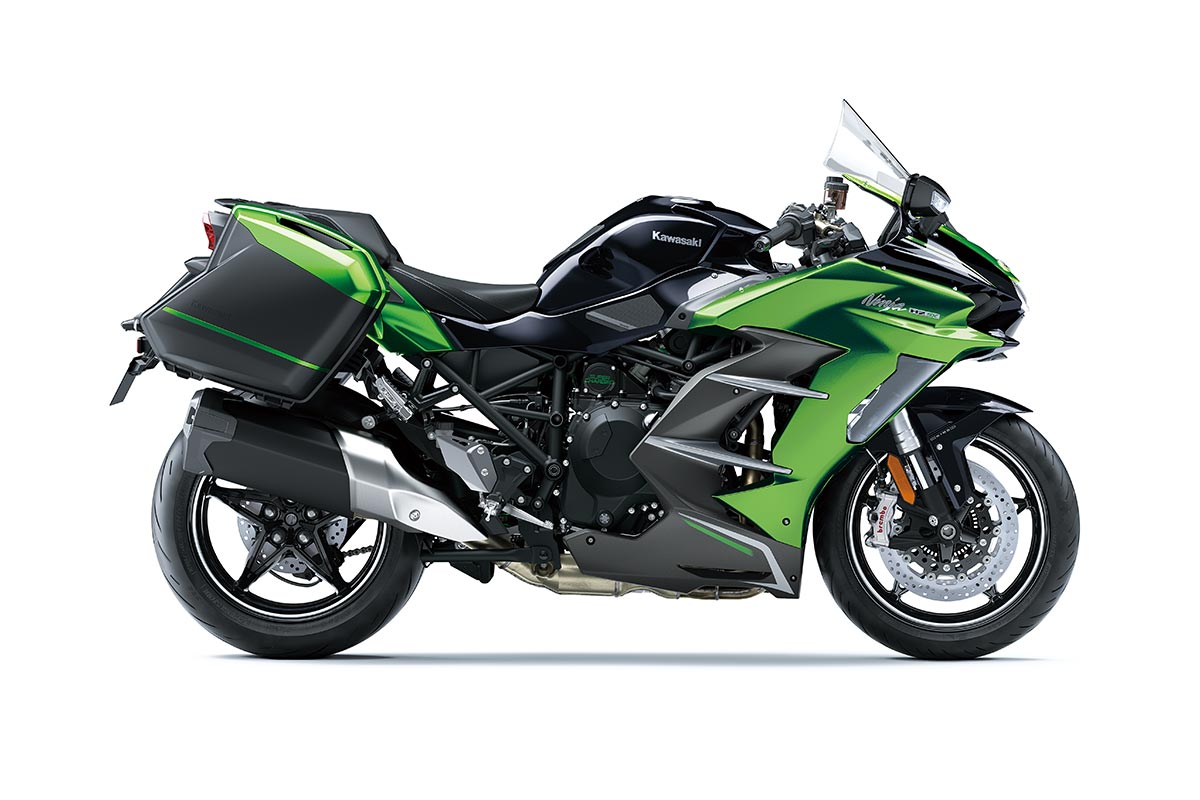

NINJA H2 SX SE

ENGINEERED TO BE FREE

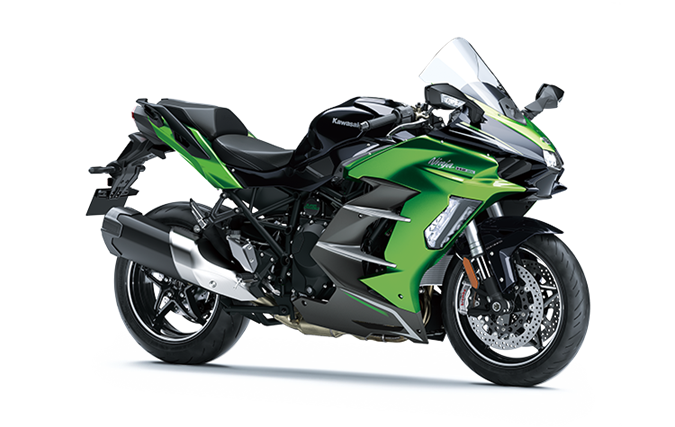

Emerald Blazed Green / Met Diablo Black / Met Matte Graphene Steel Gray

Emerald Blazed Green / Met Diablo Black / Met Matte Graphene Steel Gray

Kawasaki Electronic Control Suspension (KECS)
with Skyhook technology
6.5” TFT
colour instrumentation
Maximum Power 147.1 kW {200 PS} / 11,000 rpm
Maximum Power with Ram Air 154.1 kW {210 PS} / 11,000 rpm
Maximum Torque 137.3 Nm {14.0 kgfm} / 8,500 rpm
Engine 4-stroke In-Line Four
Displacement 998 cc
Bore x Stroke 76.0 x 55.0 mm
Compression Ratio 11.2:1
Valve System DOHC, 16 valves
Fuel System Fuel injection: ø40 mm x 4 with dual injection
Intake System Kawasaki Supercharger
Ignition Digital
Starting Electric
Cooling Liquid-cooled
Lubrication Forced lubrication, wet sump with oil cooler
Transmission 6-speed, return, dog-ring
Primary Reduction Ratio 1.480 (74/50)
Gear Ratio: 1st 3.077 (40/13)
Gear Ratio: 2nd 2.429 (34/14)
Gear Ratio: 3rd 2.045 (45/22)
Gear Ratio: 4th 1.727 (38/22)
Gear Ratio: 5th 1.524 (32/21)
Gear Ratio: 6th 1.348 (31/23)
Final Reduction Ratio 2.444 (44/18)
Clutch Wet multi-disc, manual
Final Drive Chain
Frame Trellis, high-tensile steel, with Swingarm Mounting Plate
Front Suspension ø43 mm inverted fork with KECS-controlled compression and rebound damping, manual spring preload adjustability, and top-out springs
Rear Suspension New Uni Trak, BFRC lite gas-charged shock with piggyback reservoir, KECS-controlled compression and rebound damping, and electronically adjustable spring preload
Front Wheel Travel 120 mm
Rear Wheel Travel 139 mm
Rake 24.7°
Trail 103 mm
Steering Angle (L/R) 30° / 30°
Front Tyre 120/70ZR17M/C (58W)
Rear Tyre 190/55ZR17M/C (75W)
Front Brake/s Dual semi-floating ø320 mm discs
Front Caliper/s Dual radial-mount, Brembo Stylema monobloc, opposed 4-piston
Rear Brake ø250 mm disc
Rear Caliper 2-piston
Dimensions (LxWxH) 2,175 x 790 x 1,260 mm
Wheelbase 1,480 mm
Road Clearance 130 mm
Seat Height 820 mm
Curb Weight* 267 kg
Fuel Capacity 19 litres
Model Code ZX1002RSFNN

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.

Specifications subject to change.
